TPS7A7300 Series

3-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Catalog

3-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Part	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Supplied Contents	Regulator Type	Channels per IC	Mounting Type	Voltage - Input (Max) [Max]	Control Features	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Number of Regulators	Output Type	Protection Features	Output Configuration	Package / Case	Voltage Dropout (Max) [Max]	Supplier Device Package	Voltage - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]

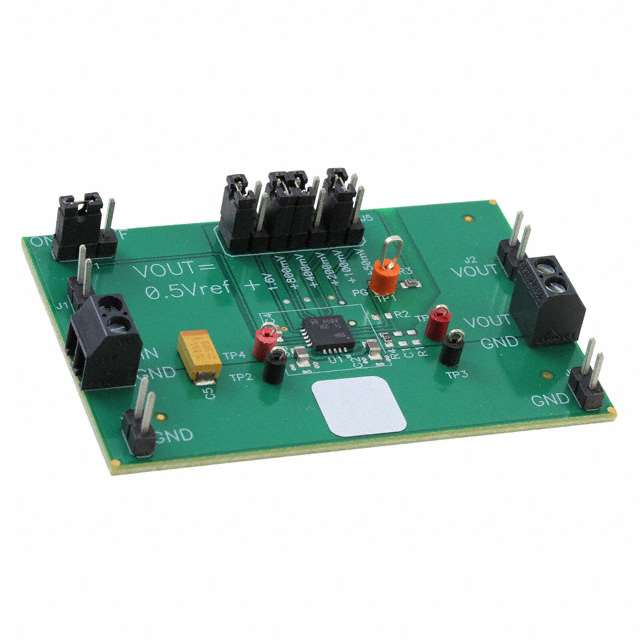

Texas Instruments TPS7A7300EVM-718	TPS7A7300	0.9 V	3.3 V	3 A	1.5 V	6.5 V	Fully Populated	Board(s)	Positive Adjustable	1 - Single
Texas Instruments TPS7A7300RGWT				3 A							Surface Mount	6.5 V	Enable Power Good Soft Start	0.9 V	4 mA	1	Adjustable (Fixed)	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	20-VQFN Exposed Pad	0.7 V	20-VQFN (5x5)	5 V	125 °C	-40 °C

Catalog

3-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Key Features

• Low-dropout voltage: 240 mV at 3 AV IN range: 1.5 V to 6.5 VConfigurable fixed V OUT range: 0.9 V to 3.5 VAdjustable V OUT range: 0.9 V to 5 VVery good load- and line-transient responseStable with ceramic output capacitor2% accuracy overline, overload, and overtemperatureProgrammable soft-startPower-good (PG) outputPackage: 5-mm × 5-mm, 20-pin VQFNLow-dropout voltage: 240 mV at 3 AV IN range: 1.5 V to 6.5 VConfigurable fixed V OUT range: 0.9 V to 3.5 VAdjustable V OUT range: 0.9 V to 5 VVery good load- and line-transient responseStable with ceramic output capacitor2% accuracy overline, overload, and overtemperatureProgrammable soft-startPower-good (PG) outputPackage: 5-mm × 5-mm, 20-pin VQFN

Description

The TPS7A7300 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability ( 240 mV at 3 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7300 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7300 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7300 is available in a 5-mm × 5-mm, 20-pin VQFN package. The TPS7A7300 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability ( 240 mV at 3 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7300 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7300 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7300 is available in a 5-mm × 5-mm, 20-pin VQFN package.
