85825 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

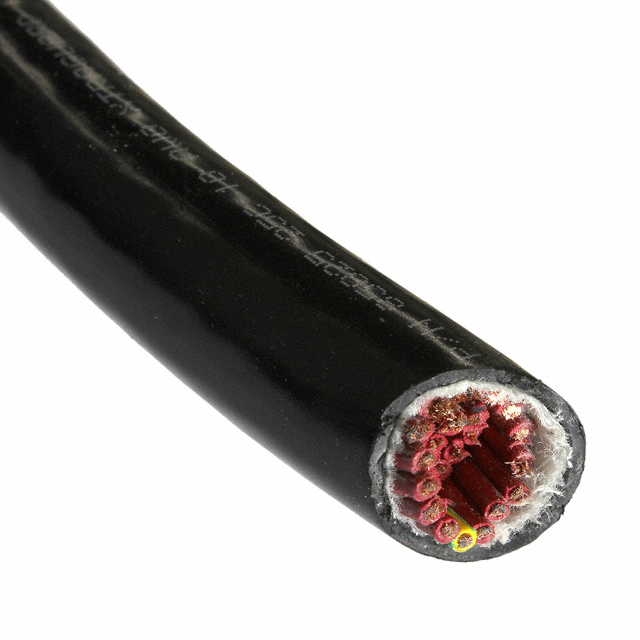

CABLE 25COND 18AWG BLACK
| Part | Wire Gauge | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Ratings | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 18 AWG | Poly-Vinyl Chloride (PVC) | 105 | 38 AWG | 25 | Poly-Vinyl Chloride (PVC) | Black | 30.5 m | 100 ft | 0.065 in | 1.651 mm | 600 V | 19.48 mm | 0.767 " | Multi-Conductor | UL Style 2587 | Copper Tinned | ||
ALPHA WIRE | 18 AWG | Poly-Vinyl Chloride (PVC) | 105 | 38 AWG | 25 | Poly-Vinyl Chloride (PVC) | Black | 0.065 in | 1.651 mm | 600 V | 19.48 mm | 0.767 " | Multi-Conductor | UL Style 2587 | Copper Tinned | 1000 ft | 304.8 m |
