OSTTG02 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

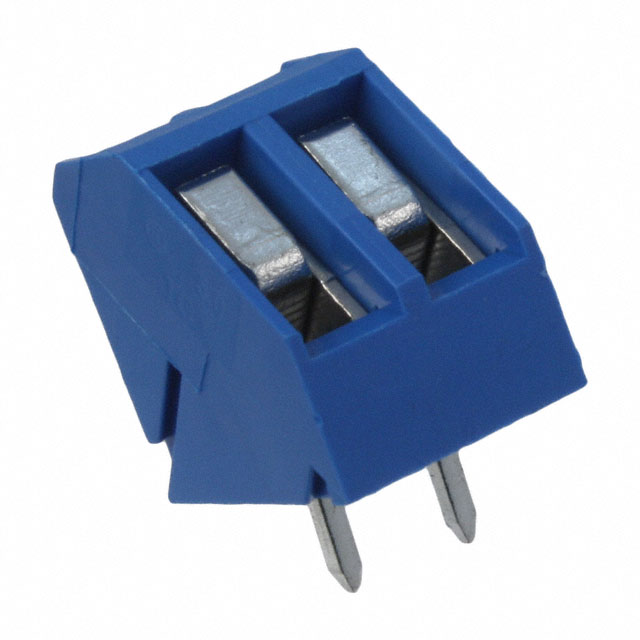

TERM BLOCK 2POS 5MM PCB
| Part | Screw Material - Plating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Contact Material - Plating | Clamp Material - Plating | Voltage | Color | Mating Orientation | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Number of Levels | Features | Current | Pitch | Pitch | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | -30 ░C | 105 ░C | M2.5 | 3.5 Lb-In | 0.4 Nm | Brass | Brass | 300 VDC | Blue | Angled | Through Hole | 24 AWG | 12 AWG | 2 | 1 | Interlocking (Side) | 15 A | 0.197 in | 5 mm | Screw - Rising Cage Clamp |
