3580/26 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

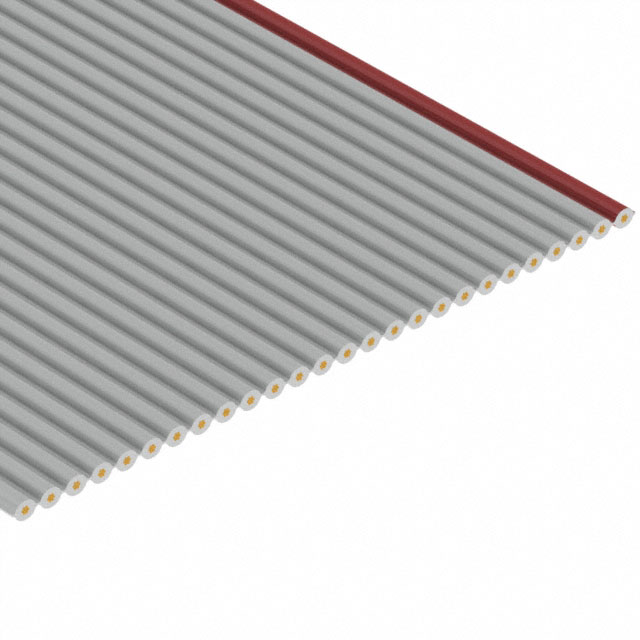

RIBBON CABLE, FLAT, UNSHIELDED, 26 CONDUCTOR, 28 AWG, 0.09 MM², 100 FT, 30.5 M
| Part | Cable Type | Jacket Color | Shielding | Number of Conductors | First Conductor Mark | Ribbon Thickness [custom] | Ribbon Thickness [custom] | Jacket (Insulation) Material | Pitch [x] | Pitch [x] | Conductor Material | Length [x] | Length [x] | Voltage | Ribbon Width | Ribbon Width | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Flat Cable | Gray | Unshielded | 26 | Red | 0.033 " | 0.84 mm | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 100 ft | 30.48 m | 300 V | 1.3 " | 33.02 mm | 7 | 36 AWG | -20 C | 105 ░C | UL Style 2651 | 28 AWG |
