HT 3/8 Series

Catalog

SPIRAL WRAP 0.271" X 100' BLACK

Part	Material	Length	Length	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Color	Wall Thickness	Wall Thickness	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Features	Diameter - Outside, Non-Expanded [diameter]	Heat Protection	Material Flammability Rating	Environment Protection [custom]	Wall Thickness [custom]

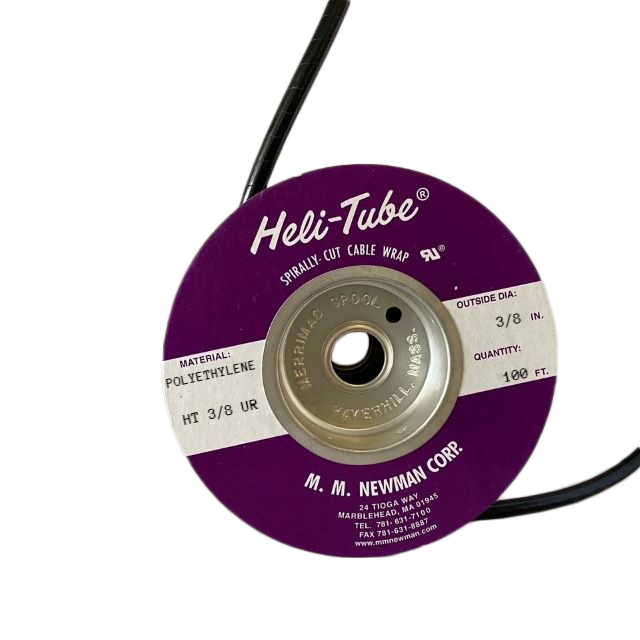

MM Newman Corporation HT 3/8 UR	Polyethylene (PE)	100 '	30.48 m	0.375 in	9.52 mm	Black	1.32 mm	0.052 "	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	6.88 mm	0.271 in	Harness	88 °C	-60 °C	Chemical Resistant Solvent Resistant

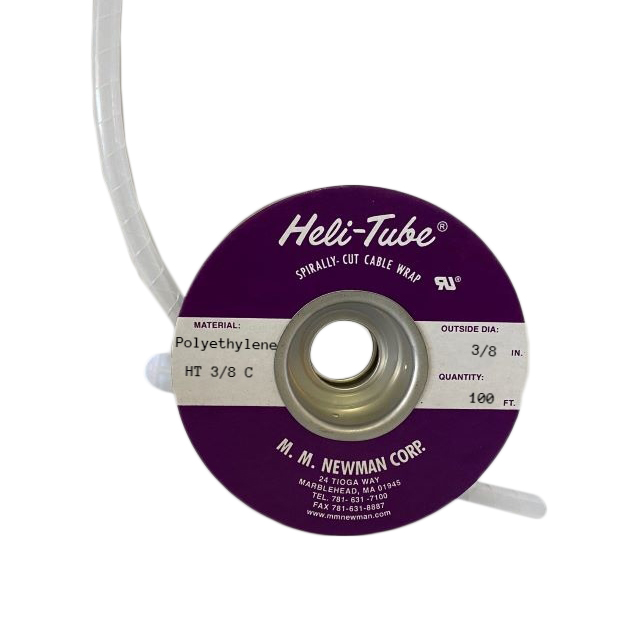

MM Newman Corporation HT 3/8 C	Polyethylene (PE)	100 '	30.48 m	0.375 in	9.52 mm	Natural	1.32 mm	0.052 "	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	6.88 mm	0.271 in	Harness	88 °C	-60 °C	Chemical Resistant Solvent Resistant

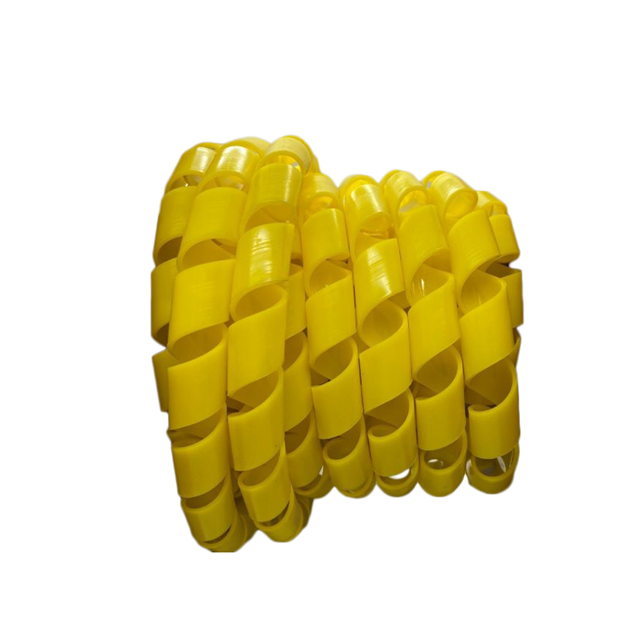

MM Newman Corporation HT 3/8 C YE DG	Polyethylene (PE)	100 '	30.48 m		0.375 in	Yellow	1.32 mm	0.052 "	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	6.88 mm	0.271 in	Harness	88 °C	-60 °C	Chemical Resistant Solvent Resistant	9.53 mm
MM Newman Corporation HT 3/8 R	Polyethylene (PE)	100 '	30.48 m		0.375 in	White	1.32 mm	0.052 "	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	6.88 mm	0.271 in	Harness	80 °C	-20 ░C	Chemical Resistant Solvent Resistant	9.53 mm	Fire Resistant	UL1441 UL94 V-2
MM Newman Corporation HT 3/8 C RE	Polyethylene (PE)	100 '	30.48 m		0.375 in	Red	1.32 mm	0.052 "	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	6.88 mm	0.271 in	Harness	88 °C	-60 °C	Chemical Resistant Solvent Resistant	9.53 mm
MM Newman Corporation HT 3/8 N-B	Nylon	100 '	30.48 m		0.375 in	Black	0.89 mm	0.035 in	Spiral Wrap	76.2 mm	3 in	Abrasion Resistant	7.75 mm	0.305 in	Harness	121 C	-40 C	Chemical Resistant Self Extinguishing Solvent Resistant	9.53 mm			UV Resistant
MM Newman Corporation HT 3/8 T	Polytetrafluoroethylene (PTFE)	100 '	30.48 m		0.375 in	Natural	0.76 mm		Spiral Wrap	63.5 mm	2.5 in	Abrasion Resistant	7.92 mm	0.312 "	Harness	260 °C	-268 °C	Chemical Resistant Solvent Resistant	9.53 mm	Fire Resistant	UL VW-1 UL94 V-0	UV Resistant	0.03 "
