1634500 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

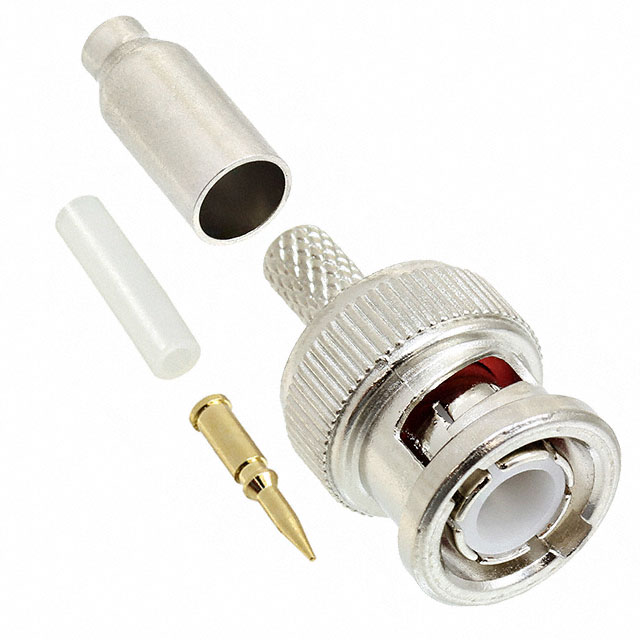

CONN BNC PLUG STR 50 OHM CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Dielectric Material | Number of Ports | Mating Cycles | Body Material | Housing Color | Shield Termination | Insertion Loss | Frequency - Max [Max] | Connector Style | Connector Type | Contact Termination | Voltage Rating | Impedance | Center Contact Material | Center Contact Plating | Mounting Type | Fastening Type | Cable Group | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | Nickel | Polymethylpentene (PMP) | 1 | 500 | Zinc Alloy | Silver | Crimp | 0.2 dB | 4 GHz | BNC | Male Pin Plug | Crimp | 500 V | 50 Ohms | Brass | Gold | Free Hanging (In-Line) | Bayonet Lock | 141A 303 76 Belden 9907 KX15 RG-58C URM43 | |
 TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | Nickel | Polymethylpentene (PMP) | 1 | 500 | Zinc Alloy | Silver | Crimp | 0.2 dB | 4 GHz | BNC | Male Pin Plug | Crimp | 500 V | 50 Ohms | Brass | Gold | Free Hanging (In-Line) | Bayonet Lock | 188A 316 KX22A KX3B RG-174A URM-95 | 1 Connector 1 Contact 1 Ferrule 1 Sleeve |
