G125-MS1 Series

Catalog

10+10 POS. MALE DIL VERTICAL SMT CONN. LATCHES (T+R) ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Material	Fastening Type	Voltage Rating	Mounting Type	Material Flammability Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Termination	Contact Finish - Mating	Connector Type	Features	Contact Shape	Number of Positions [custom]
Harwin Inc. G125-MS12005L1R	7.23 mm 7.31 mm	0.203 µm	8 µin	Phosphor Bronze	Black	20	150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Nylon 4T Polyamide (PA4T)	Latch Lock	450 VAC/DC	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Board Lock	Circular
Harwin Inc. G125-MS12005L0P	7.35 mm 7.45 mm 7.8 mm			Phosphor Bronze	Green	20	150 °C	-65 ░C	2	4.9 mm	0.193 "		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Push-Pull		Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Pick and Place Solder Retention	Circular
Harwin Inc. G125-MS11005L2P	7.23 mm 7.31 mm	0.203 µm	8 µin	Phosphor Bronze	Black	10	150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Latch Lock	450 VAC/DC	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Board Lock	Circular
Harwin Inc. G125-MS10605M1P	7.3 mm 7.44 mm	0.203 µm	8 µin	Phosphor Bronze	Green	6	150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		450 V	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Mating Flange Mounting Flange Pick and Place	Circular

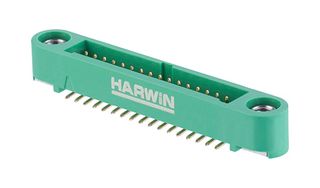

Harwin Inc. G125-MS13405M1P	7.3 mm 7.44 mm	0.203 µm	8 µin	Phosphor Bronze	Green		150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		450 V	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Mating Flange Mounting Flange Pick and Place	Circular	34
Harwin Inc. G125-MS10605L2P	7.23 mm 7.31 mm	0.203 µm	8 µin	Phosphor Bronze	Black	6	150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Latch Lock	450 VAC/DC	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Board Lock	Circular

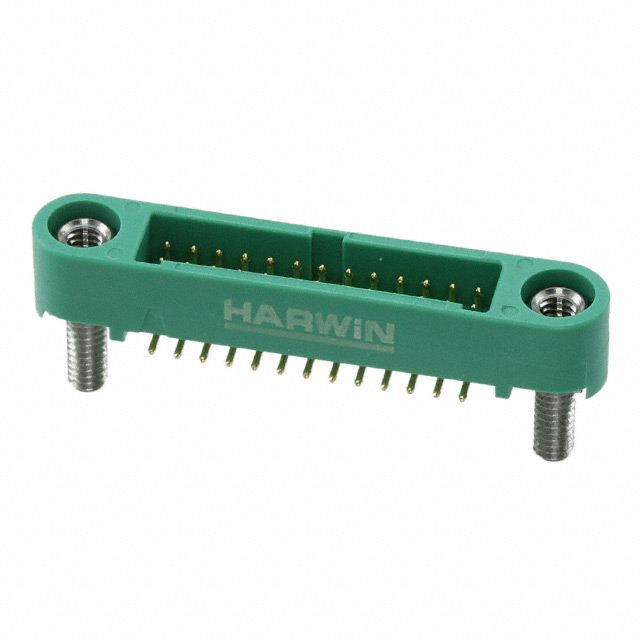

Harwin Inc. G125-MS12605M2P	7.35 mm 7.45 mm 7.8 mm			Phosphor Bronze	Green	26	150 °C	-65 ░C	2	4.9 mm	0.193 "		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Threaded	450 V	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Mating Flange Mounting Flange Pick and Place	Circular
Harwin Inc. G125-MS11605M1P	7.3 mm 7.44 mm	0.203 µm	8 µin	Phosphor Bronze	Green	16	150 °C	-65 ░C	2	4.9 mm	0.193 "	Gold	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		450 V	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Mating Flange Mounting Flange Pick and Place	Circular

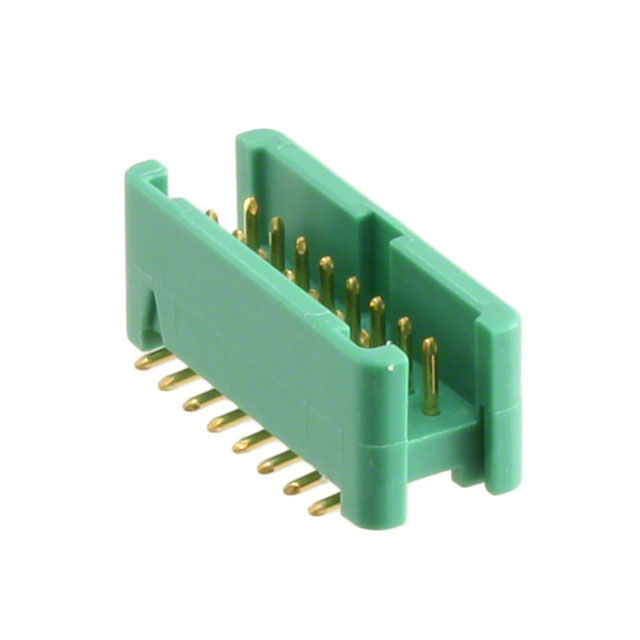

Harwin Inc. G125-MS11605L0P	7.35 mm 7.45 mm 7.8 mm			Phosphor Bronze	Green	16	150 °C	-65 ░C	2	4.9 mm	0.193 "		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Push-Pull		Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Pick and Place Solder Retention	Circular

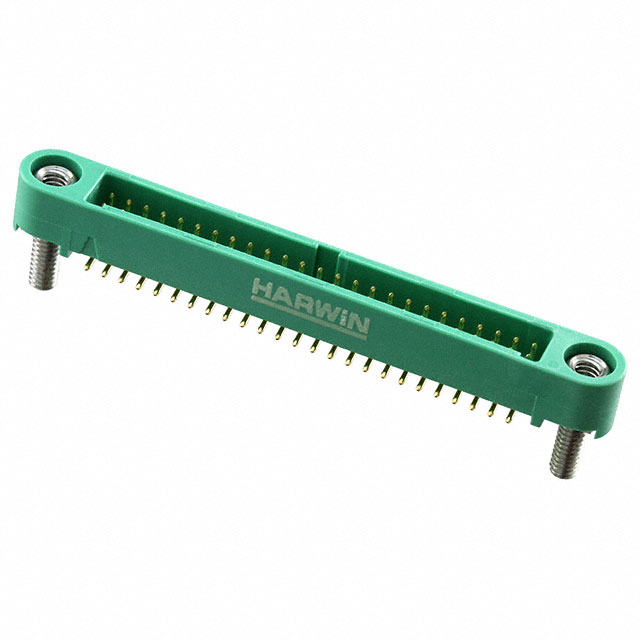

Harwin Inc. G125-MS15005M2P	7.35 mm 7.45 mm 7.8 mm			Phosphor Bronze	Green	50	150 °C	-65 ░C	2	4.9 mm	0.193 "		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Threaded	450 V	Surface Mount	UL94 V-0	Shrouded - 4 Wall	8 µin	0.203 µm	Male Pin	2 A	0.049 in	1.25 mm	Board to Board Cable	1.25 mm	0.049 in	All	Solder	Gold	Header	Mating Flange Mounting Flange Pick and Place	Circular
