32K601 Series
Manufacturer: Rosenberger
Beta
⌘K
ADAPT SMA JACK - SMA JACK
| Part | Center Contact Material | Dielectric Material | Mating Cycles | Includes | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Impedance | Convert From (Adapter End) | Convert To (Adapter End) | Adapter Series | Conversion Type | Frequency - Max [Max] | Style | Center Gender | Mounting Type | Adapter Type | Center Contact Plating | Voltage Rating | Housing Color | Fastening Type | Connector Style | Contact Termination | Shield Termination | Connector Type | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

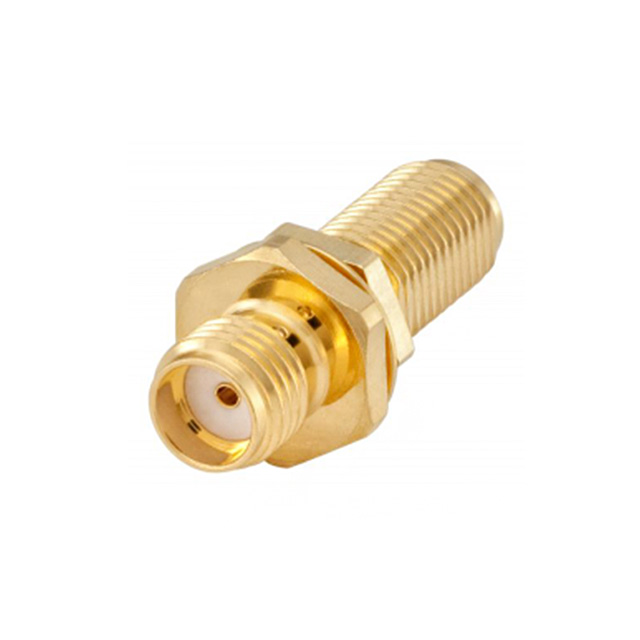

 Rosenberger | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | 1 Connector 1 Lockwasher 1 Nut | Gold | Beryllium Copper | -65 ░C | 165 °C | Bulkhead | 50 Ohms | Female Socket SMA Jack | SMA Jack Female Socket | SMA to SMA | Same Series | 18 GHz | Straight | Female to Female | Panel Mount | Jack to Jack | Gold | |||||||||

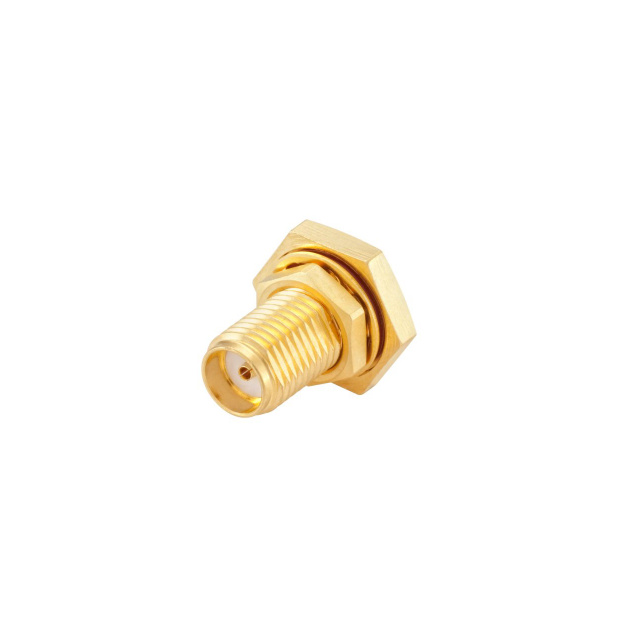

 Rosenberger | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | 1 Connector 1 Lockwasher 1 Nut | Gold | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | 50 Ohms | 18 GHz | Panel Mount | Gold | 480 V | Gold | Threaded | SMA | Solder | Solder | Female Socket Jack | 1 | ||||||||

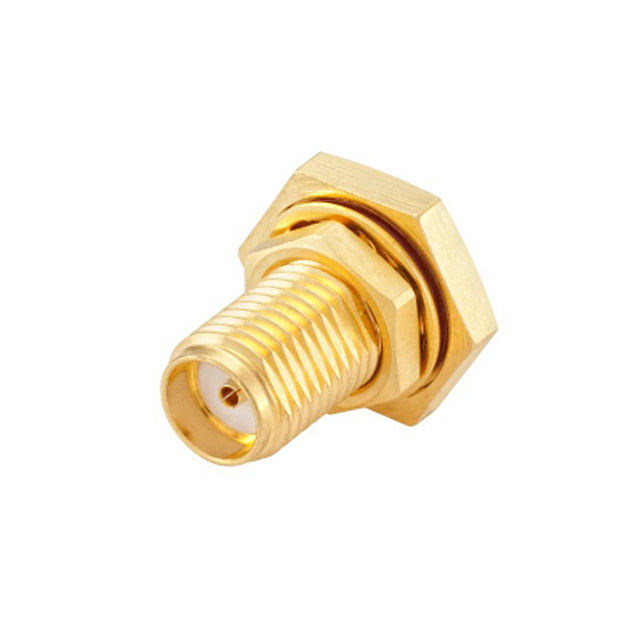

 Rosenberger | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | 1 Connector 1 Lockwasher 1 Nut | Gold | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | 50 Ohms | 18 GHz | Panel Mount | Gold | 480 V | Gold | Threaded | SMA | Solder | Solder | Female Socket Jack | 1 | RG-405 (.085" Semi Rigid) |
