JB15KH Series

Catalog

LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Actuator Material	Mechanical Life	Outline [y]	Outline [x]	Operating Force	Contact Rating @ Voltage	Illumination	Mounting Type	Actuator Type	Ingress Protection	Switch Function	Actuator Length, Right Angle [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Circuit	Actuator Orientation	Termination Style
NKK Switches JB15KH-6B	0.25 mm	Polyacetal	5000000 Cycles	6.54 mm	10.8 mm	176 gf	0.05 A 24 VDC	Non-Illuminated	Right Angle Through Hole	Square Button	IP67 - Dust Tight Waterproof	Off-Mom	7.76 mm	-25 °C	70 °C	Process Sealed	SPST-NO	Side Actuated	PC Pin
NKK Switches JB15KH-6C	0.25 mm	Polyacetal	5000000 Cycles	6.54 mm	10.8 mm	176 gf	0.05 A 24 VDC	Non-Illuminated	Right Angle Through Hole	Square Button	IP67 - Dust Tight Waterproof	Off-Mom	7.76 mm	-25 °C	70 °C	Process Sealed	SPST-NO	Side Actuated	PC Pin
NKK Switches JB15KH-6H	0.25 mm	Polyacetal	5000000 Cycles	6.54 mm	10.8 mm	176 gf	0.05 A 24 VDC	Non-Illuminated	Right Angle Through Hole	Square Button	IP67 - Dust Tight Waterproof	Off-Mom	7.76 mm	-25 °C	70 °C	Process Sealed	SPST-NO	Side Actuated	PC Pin

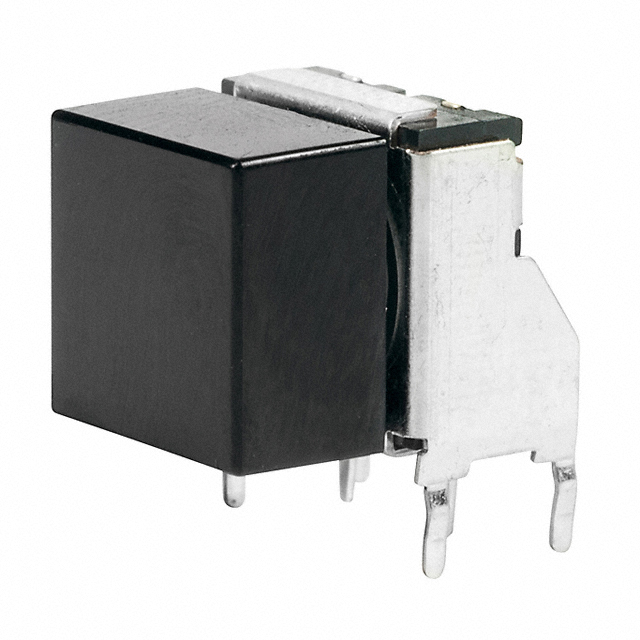

NKK Switches JB15KH-6A	0.25 mm	Polyacetal	5000000 Cycles	6.54 mm	10.8 mm	176 gf	0.05 A 24 VDC	Non-Illuminated	Right Angle Through Hole	Square Button	IP67 - Dust Tight Waterproof	Off-Mom	7.76 mm	-25 °C	70 °C	Process Sealed	SPST-NO	Side Actuated	PC Pin
