EE-SX872 Series

Catalog

PHOTOINTERRUPTER TRANSMISSIVE 5MM TRANSISTOR 3-PIN

Part	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Current - Supply	Output Configuration	Sensing Method	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Omron Automation and Safety EE-SX872P	5 mm	0.197 in	24 V	5 V	Module Wire Leads	30 mA	PNP - Open Collector/Light-ON	Through-Beam	Chassis Mount M3 Screw	55 °C	-25 °C

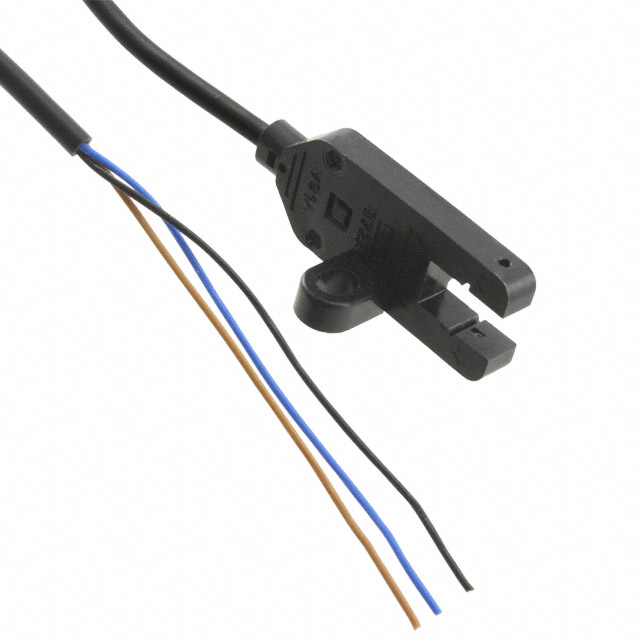

Omron Automation and Safety EE-SX872A	5 mm	0.197 in	24 V	5 V	Module Wire Leads	35 mA	NPN - Open Collector/Light-ON	Through-Beam	Chassis Mount M3 Screw	55 °C	-25 °C
Omron Automation and Safety EE-SX872R	5 mm	0.197 in	24 V	5 V	Module Wire Leads	30 mA	PNP - Open Collector/Light-ON	Through-Beam	Chassis Mount M3 Screw	55 °C	-25 °C
