892-106 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 106POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish	Number of Positions	Contact Type	Termination	Contact Material	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Features
EDAC Inc. 892-106-523-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Through Hole
EDAC Inc. 892-106-556-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-106-560-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Card Extender

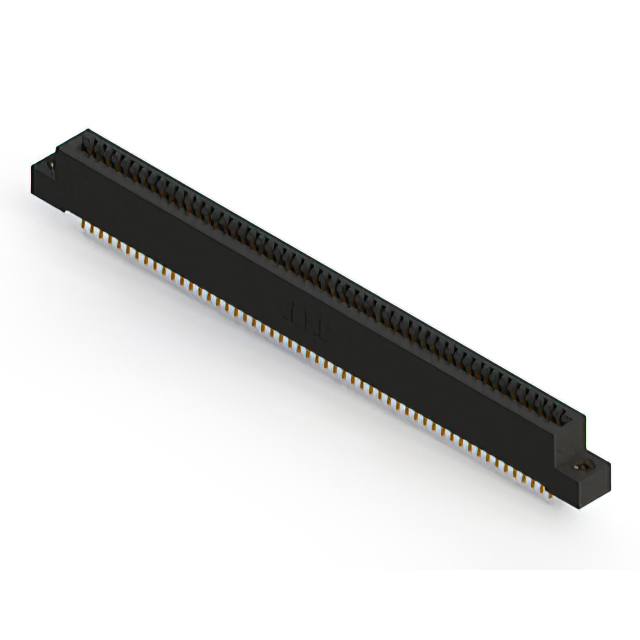

EDAC Inc. 892-106-556-207	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-106-559-203	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Right Angle Through Hole

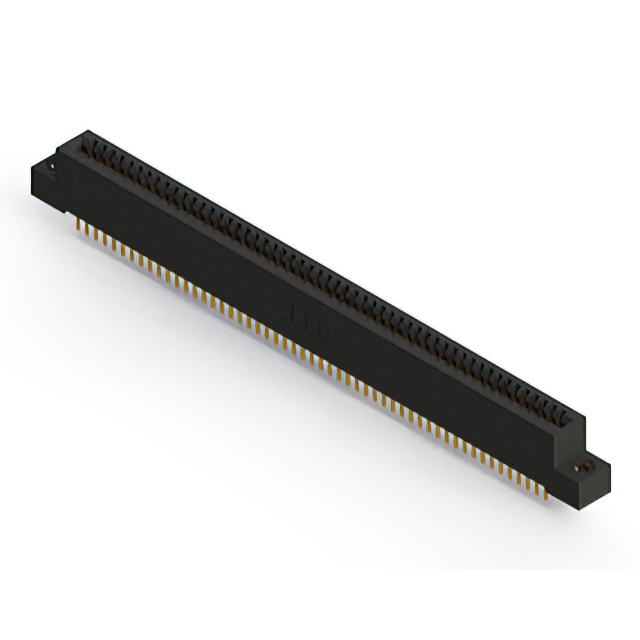

EDAC Inc. 892-106-521-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Through Hole
EDAC Inc. 892-106-555-207	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-106-559-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Right Angle Through Hole
EDAC Inc. 892-106-521-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Through Hole
EDAC Inc. 892-106-523-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	125 °C	-40 C	Black	Gold	106	Cantilever	Solder	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	53	0.25 Ám	10 Áin	2	Through Hole
