VE-261 Series

Catalog

DC DC CONVERTER 12V 200W

Part	Efficiency	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Number of Outputs	Features	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Power (Watts)	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]
Vicor Corporation VE-261-CU-B1	90 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	61 mm	27.1 mm	116.8 mm	1.07 "	2.4 "	4.6 "	ITE (Commercial)	200 W	Full Brick	16.67 A	3000 V	-25 °C	85 °C
Vicor Corporation VE-261-CU	90 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	61 mm	12.7 mm	116.8 mm	0.5 in	2.4 "	4.6 "	ITE (Commercial)	200 W	Full Brick	16.67 A	3000 V	-25 °C	85 °C
Vicor Corporation VE-261-CY	90 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	61 mm	12.7 mm	116.8 mm	0.5 in	2.4 "	4.6 "	ITE (Commercial)	50 W	Full Brick	4.17 A	3000 V	-25 °C	85 °C
Vicor Corporation VE-261-EU-F2	88 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	47.2 mm	26.7 mm	116.8 mm	1.05 "	1.86 "	4.6 "	ITE (Commercial)	200 W	Full Brick	16.67 A	3000 V	-10 °C	85 °C
Vicor Corporation VE-261-CU-S	90 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	45.7 mm	13.2 mm	116.8 mm	0.52 "	1.8 in	4.6 "	ITE (Commercial)	200 W	Full Brick	16.67 A	3000 V	-25 °C	85 °C

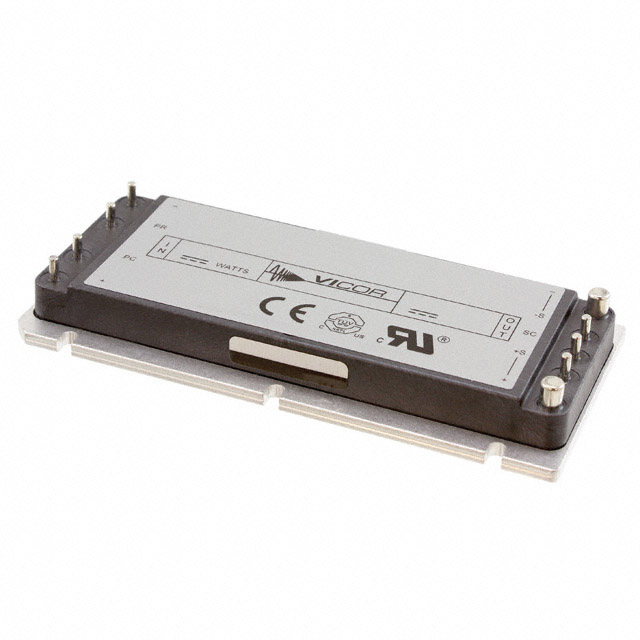

Vicor Corporation VE-261-CV	90 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	61 mm	12.7 mm	116.8 mm	0.5 in	2.4 "	4.6 "	ITE (Commercial)	150 W	Full Brick	12.5 A	3000 V	-25 °C	85 °C
Vicor Corporation VE-261-EX	88 %	400 V	Isolated Module	12 V	1	OCP OTP OVP SCP	200 V	Through Hole	61 mm	12.7 mm	116.8 mm	0.5 in	2.4 "	4.6 "	ITE (Commercial)	75 W	Full Brick	6.25 A	3000 V	-10 °C	85 °C
