895-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions	Color	Contact Finish	Card Type	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Contact Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Gender	Read Out	Features	Flange Feature
EDAC Inc. 895-080-541-502	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Wire Wrap	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Through Hole	3.25 mm	0.128 "	Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual
EDAC Inc. 895-080-555-201	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Board Edge Straddle Mount			Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Card Extender
EDAC Inc. 895-080-540-212	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Wire Wrap	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Through Hole	3.25 mm	0.128 "	Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		Flush Mount Side Opening Unthreaded
EDAC Inc. 895-080-558-808	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Right Angle Through Hole			Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-080-556-802	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Board Edge Straddle Mount	3.25 mm	0.128 "	Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Card Extender

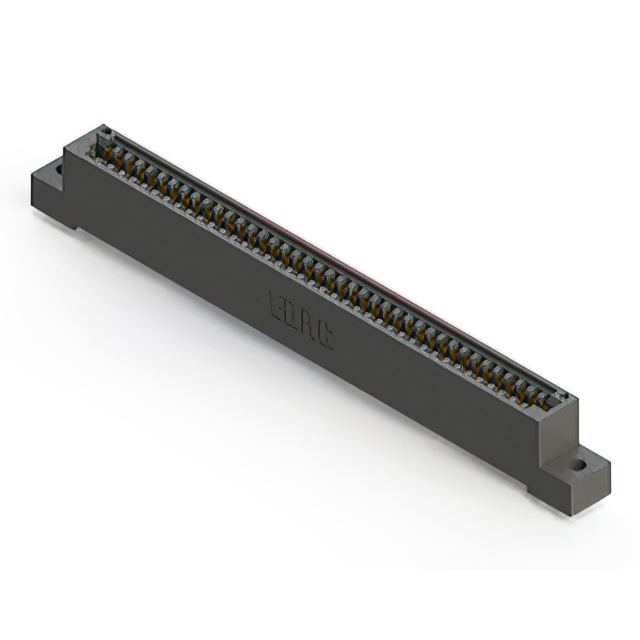

EDAC Inc. 895-080-556-202	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Board Edge Straddle Mount	3.25 mm	0.128 "	Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Card Extender	Flush Mount Top Opening Unthreaded
EDAC Inc. 895-080-524-803	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Through Hole	2.95 mm	0.116 "	Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		Floating Bobbin Top Mount Opening
EDAC Inc. 895-080-558-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Right Angle Through Hole			Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-080-520-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Through Hole			Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-080-500-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Solder Eyelet(s)	80	Black	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	40	Through Hole			Copper Alloy	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual		4-40 Flush Mount Threaded Insert Top Opening
