OSTTE14 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 14P SIDE ENT 3.5MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Clamp Material - Plating [custom] | Screw Material - Plating | Contact Material - Plating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Wire Termination | Pitch | Pitch | Number of Levels | Mounting Type | Voltage | Color | Current | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Features | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

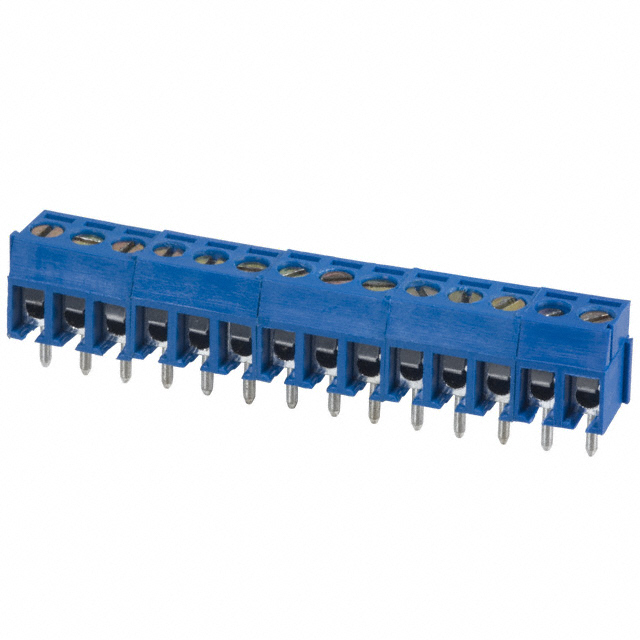

 On Shore Technology Inc. | 1.7 Lb-In | 0.2 Nm | M2 | Stainless Steel | Steel - Zinc Plated | Brass - Tin Plated | Thermoplastic | -30 ░C | 105 ░C | Screw - Leaf Spring Wire Guard | 3.5 mm | 0.138 " | 1 | Through Hole | 125 V | Blue | 10 A | 26 AWG | 16 AWG | Horizontal with Board | Interlocking (Side) | 14 |

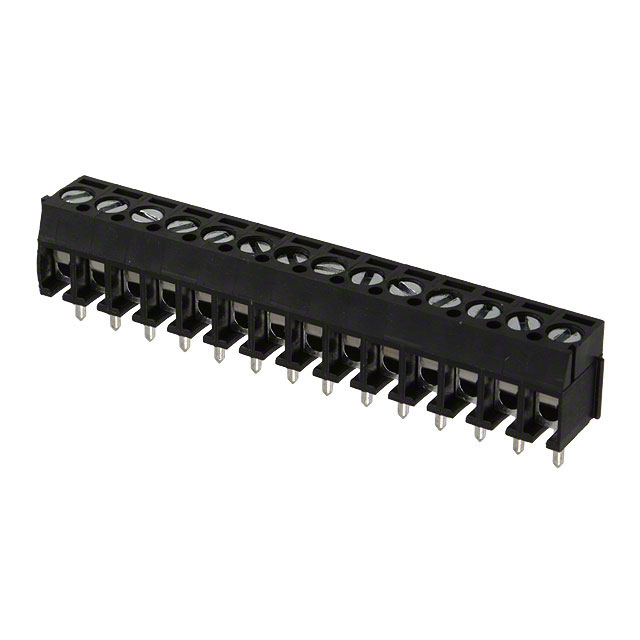

 On Shore Technology Inc. | 1.7 Lb-In | 0.2 Nm | M2 | Stainless Steel | Steel - Zinc Plated | Tin Plated | Thermoplastic | -40 C | 115 °C | Screw - Leaf Spring Wire Guard | 3.5 mm | 0.138 " | 1 | Through Hole | 125 V | Black | 10 A | 26 AWG | 16 AWG | Horizontal with Board | Interlocking (Side) | 14 |
