5606B1801 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

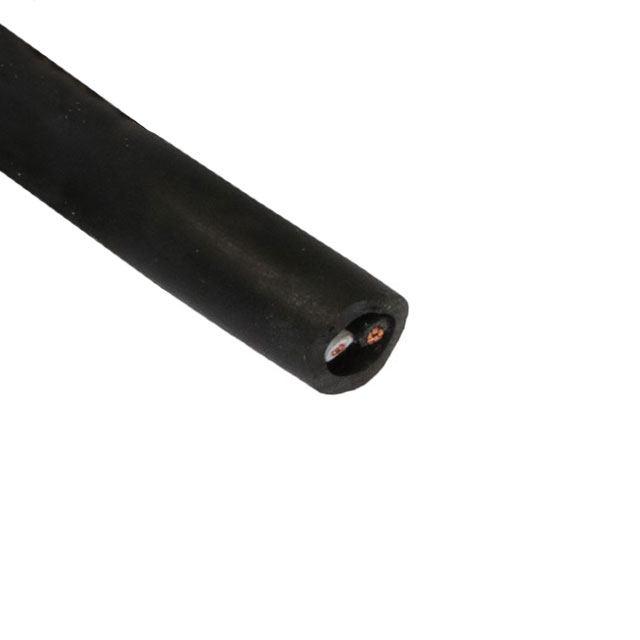

CABLE 2COND 18AWG BLACK 1000'
| Part | Wire Gauge | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 18 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) | 90 °C | -25 °C | 304.8 m | 1000 ft | Multi-Conductor | 7.01 mm | 0.276 in | 600 V | 0.0152 in | 7 | Poly-Vinyl Chloride (PVC) | 2 | Black | 0.05 in | 1.27 mm | ||
ALPHA WIRE | 18 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) | 90 °C | -25 °C | 152.4 m | 500 ft | Multi-Conductor | 7.01 mm | 0.276 in | 600 V | 0.0152 in | 7 | Poly-Vinyl Chloride (PVC) | 2 | Black | 0.05 in | 1.27 mm | ||
ALPHA WIRE | 18 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) | 90 °C | -25 °C | Multi-Conductor | 7.01 mm | 0.276 in | 600 V | 0.0152 in | 7 | Poly-Vinyl Chloride (PVC) | 2 | Black | 0.05 in | 1.27 mm | 100 ft | 30.5 m |
