3267 Series

Catalog

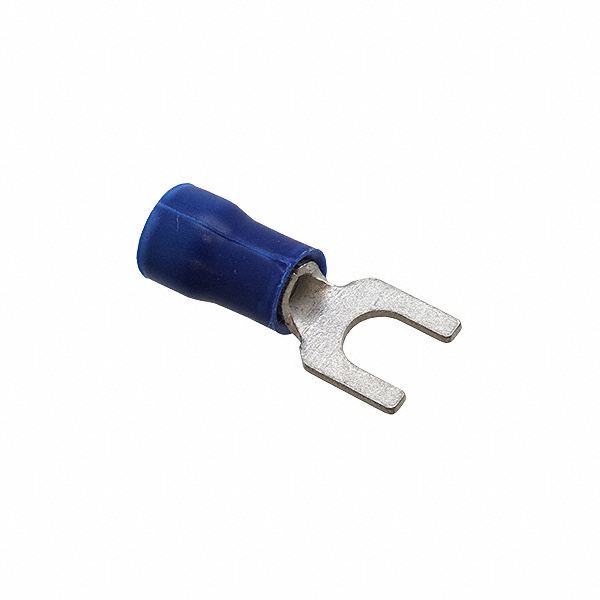

CONN SPADE TERM 14-16AWG #8 BLU

Part	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Color	Stud/Tab Size	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Length - Termination	Length - Termination	Terminal Type
TE Connectivity Raychem Cable Protection 326741	Copper	0.297 in	7.54 mm	Crimp	Serrated Termination	0.171 in	4.34 mm	Insulated	0.203 in	5.16 mm	Free Hanging (In-Line)	4.9 mm	3 mm	0.193 in	0.118 in	Blue	8 Stud	Poly-Vinyl Chloride (PVC)	19.43 mm	0.765 in	10.57 mm	0.416 in	Standard
