56K508 Series
Manufacturer: Rosenberger
Beta
⌘K

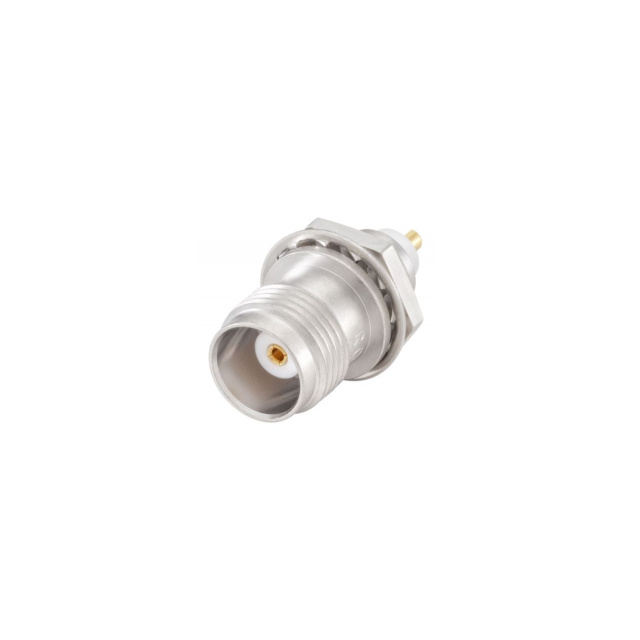

TNC BULKHEAD JACK
| Part | Body Material | Center Contact Plating | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Center Contact Material | Housing Color | Connector Style | Frequency - Max [Max] | Number of Ports | Contact Termination | Connector Type | Shield Termination | Fastening Type | Mounting Type | Impedance | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Gold | White Bronze | 500 | -25 °C | 110 °C | 500 V | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Silver | TNC | 10 GHz | 1 | Solder Cup | Female Socket Jack | Solder | Threaded | Panel Mount | 50 Ohms | Bulkhead - Rear Side Nut |
