5SE1 Series

Catalog

SWITCH SNAP ACTION SPDT 7A 28V

Part	Voltage Rating - DC	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Overtravel [custom]	Overtravel [custom]	Mounting Type	Current Rating (Amps)	Release Force	Termination Style	Circuit	Operating Force [Max]	Operating Force [Min]	Pretravel	Pretravel	Operating Position	Operating Position	Voltage Rating - AC	Ingress Protection
Honeywell Sensing and Productivity Solutions 5SE1-12	28 V	On-Mom	Round (Pin Plunger)	85 °C	-26 °C	0.1 mm	0.004 in	0.003 "	0.076 mm	Chassis Mount	7 A	113 gf	Wire Leads	SPDT	482 gf	141 gf	0.05 in	1.27 mm	10.8 mm	0.425 in

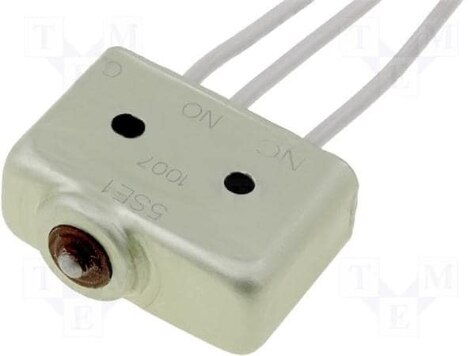

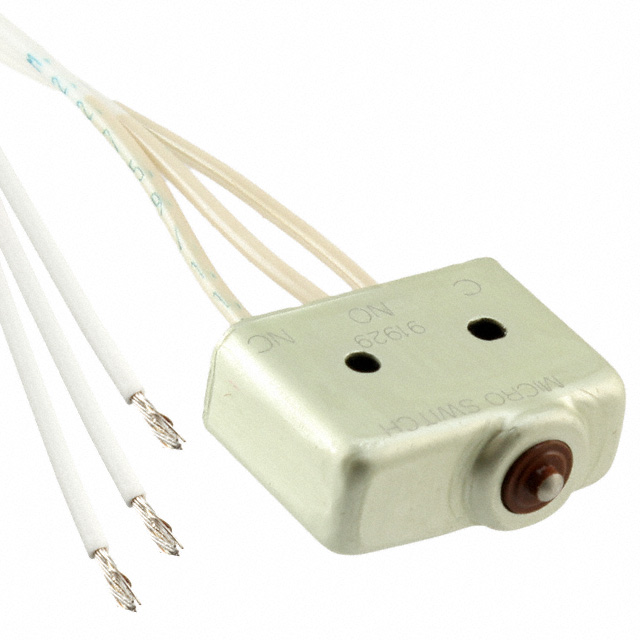

Honeywell Sensing and Productivity Solutions 5SE1-3	30 V	On-Mom	Round (Pin Plunger)	85 °C	-26 °C	0.1 mm	0.004 in	0.003 "	0.076 mm	Chassis Mount	5 A	113 gf	Wire Leads	SPDT	482 gf	141 gf	0.05 in	1.27 mm	10.8 mm	0.425 in	250 V	Waterproof
