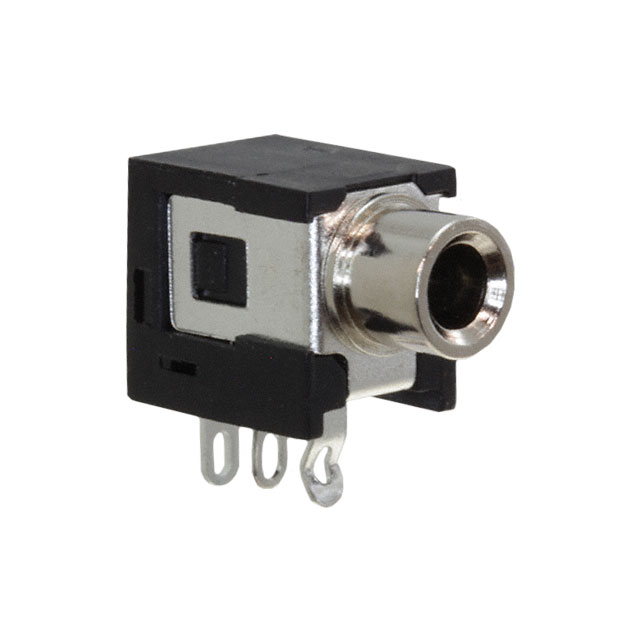

ASJ-125 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN 3.5MM STEREO JACK F 3 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT
| Part | Housing Material | Voltage - Rated | Contact Material - Plating | Contact Material | Current Rating (Amps) | Body Color | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) | Mounting Type | Connector Type | Insulation Color | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Termination | Gender | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Operating Temperature [Max] | Operating Temperature [Min] | Signal Lines |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) | 12 VDC | Tin | Copper Alloy | 2 A | Black | Unshielded | 3 | 3 | Right Angle Through Hole | Phone Jack | Black | 0.142 in | 3.6 mm | Board Guide | Kinked Pin Solder Eyelet | Female | 0.125 in | 3.5 mm | 0.141 in | 85 °C | -25 °C | Stereo (3 Conductor TRS) |
