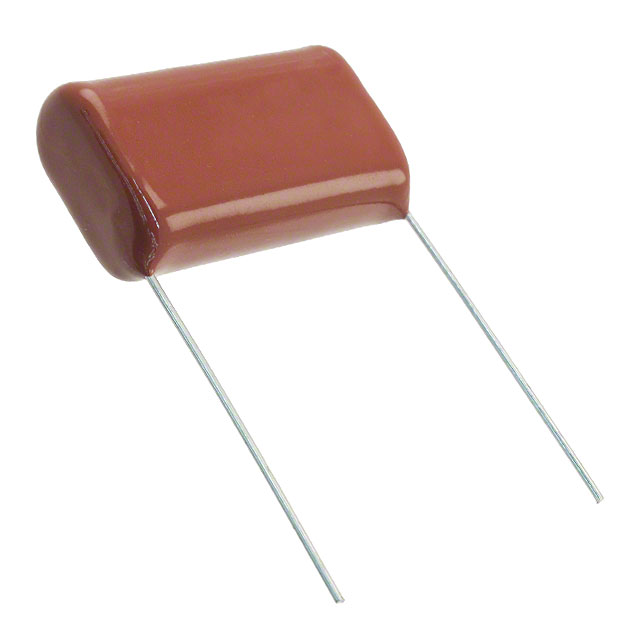

ECQ-E6105 Series

Catalog

CAP FILM 1UF 5% 630VDC RADIAL

Part	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Tolerance	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-E6105JF	Radial	27.5 mm	1.083 in	0.492 "	1.22 in	31 mm	12.5 mm	Polyester Metallized	-40 °C	105 ░C	1 µF	5 %	General Purpose	Through Hole	23.4 mm	0.921 in	PC Pins
Panasonic Industrial Automation Sales ECQ-E6105KZ	Radial	38.5 mm	1.516 in	0.531 in	1.673 in	42.5 mm	13.5 mm	Polyester Metallized	-40 °C	85 °C	1 µF	10 %	General Purpose	Through Hole			PC Pins	0.945 in	24 mm
Panasonic Industrial Automation Sales ECQ-E6105JFB	Radial	22.5 mm	0.886 in	0.492 "	1.22 in	31 mm	12.5 mm	Polyester Metallized	-40 °C	105 ░C	1 µF	5 %	General Purpose	Through Hole			PC Pins	1.059 "	26.9 mm
