090147 Series

Manufacturer: Molex

Catalog

CONN RCPT 8POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Connector Type	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Insulation Material	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Voltage Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Applications	Number of Positions
Molex 0901471308	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V	8	0.1 in	2.54 mm	Female Socket	30 Áin	0.76 Ám	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471113	1.02 Ám	40 Áin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All		Push-Pull	350 V	13	0.1 in	2.54 mm	Female Socket	40 µin	1.02 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471216	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V		0.1 in	2.54 mm	Female Socket	15 µin	0.38 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications	16
Molex 0901471208	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V	8	0.1 in	2.54 mm	Female Socket	15 µin	0.38 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471314	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V	14	0.1 in	2.54 mm	Female Socket	30 Áin	0.76 Ám	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471107	1.02 Ám	40 Áin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All		Push-Pull	350 V	7	0.1 in	2.54 mm	Female Socket	40 µin	1.02 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471130	1.02 Ám	40 Áin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All		Push-Pull	350 V	30	0.1 in	2.54 mm	Female Socket	40 µin	1.02 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications

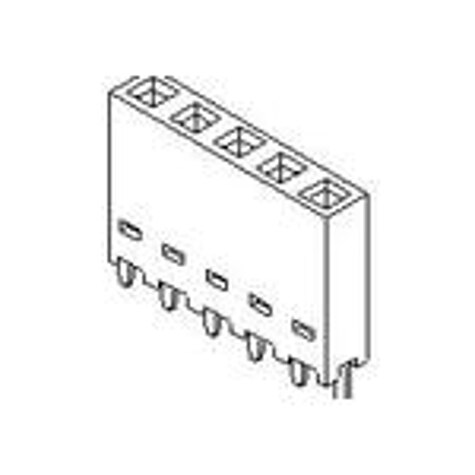

Molex 0901471307	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V	7	0.1 in	2.54 mm	Female Socket	30 Áin	0.76 Ám	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications

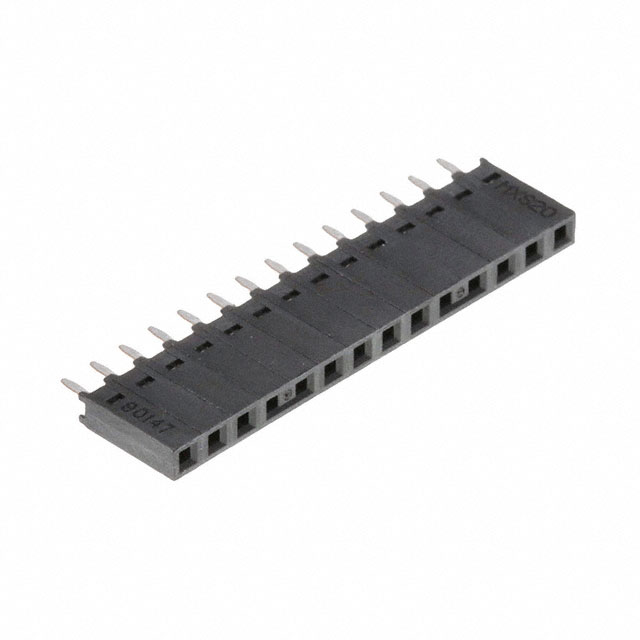

Molex 0901471114	1.02 Ám	40 Áin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All		Push-Pull	350 V	14	0.1 in	2.54 mm	Female Socket	40 µin	1.02 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
Molex 0901471210	3 µm	118.1 µin	Square	Receptacle	Phosphor Bronze	0.335 "	8.51 mm	105 ░C	-55 °C	0.114 in	2.9 mm	3 A	Solder	Polyester Glass Filled	1	Tin	All	Gold	Push-Pull	350 V	10	0.1 in	2.54 mm	Female Socket	15 µin	0.38 µm	Through Hole	Black	Automotive General Purpose Lighting Medical Telecommunications
