HP-CWS Series

Catalog

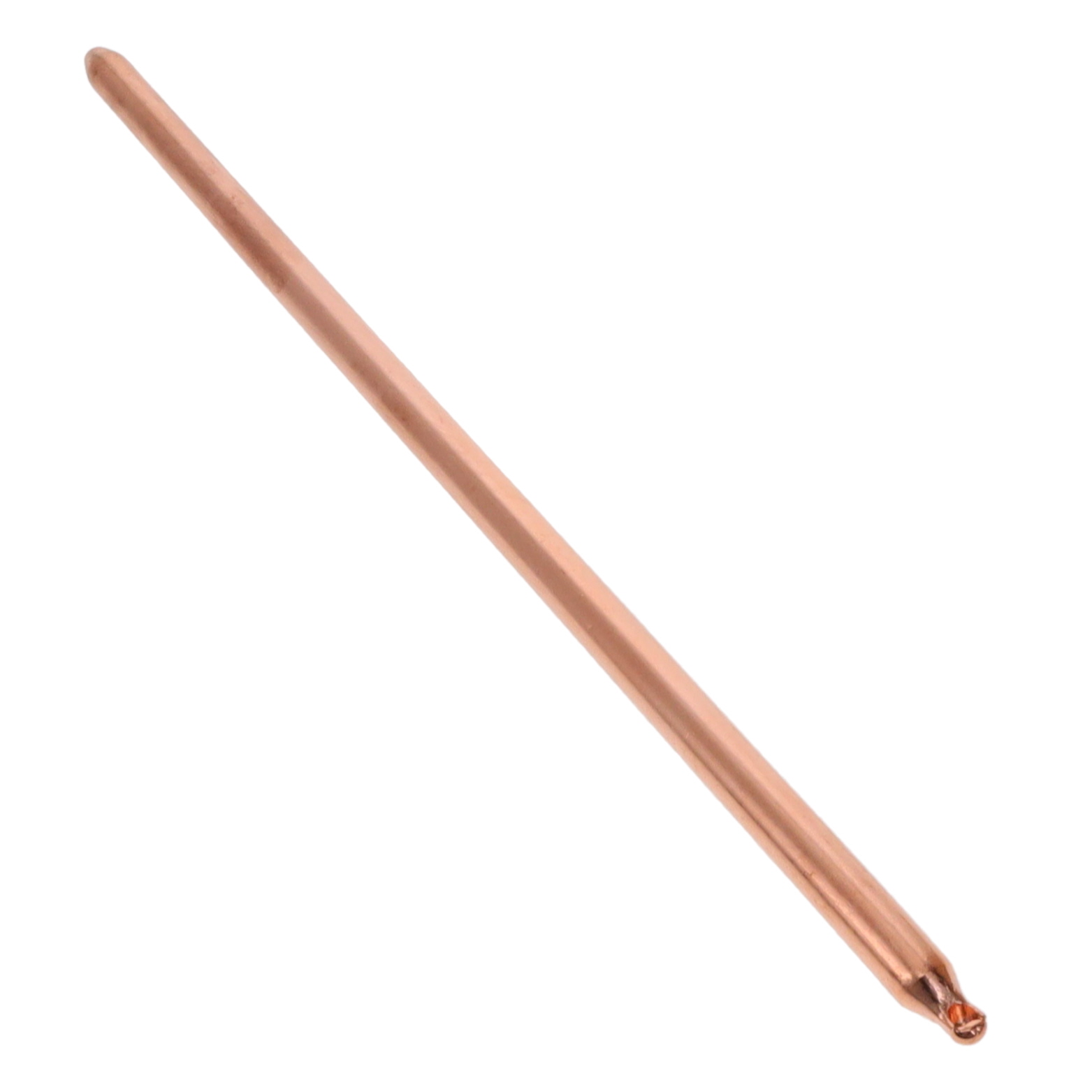

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, ROUND, SINTER WICK, 10MM DIA, 321MM L, 1MM WALL THICK, 1MM WICK THICK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Power - Cooling	Type	Shape	Wick Type	Diameter [diameter]	Diameter [diameter]	Length	Length	Attachment Method	Height [z]	Height [z]	Width [x]	Width [x]	Length [x]	Length [x]	Height	Height
Boyd Laconia, LLC HP-CWS-R10-321-K	180 °C	-55 C	Copper	85 W 321 mm	Heat Pipe	Round	Sintered	0.394 in	10 mm	321 mm	12.638 in	Epoxy or Solder

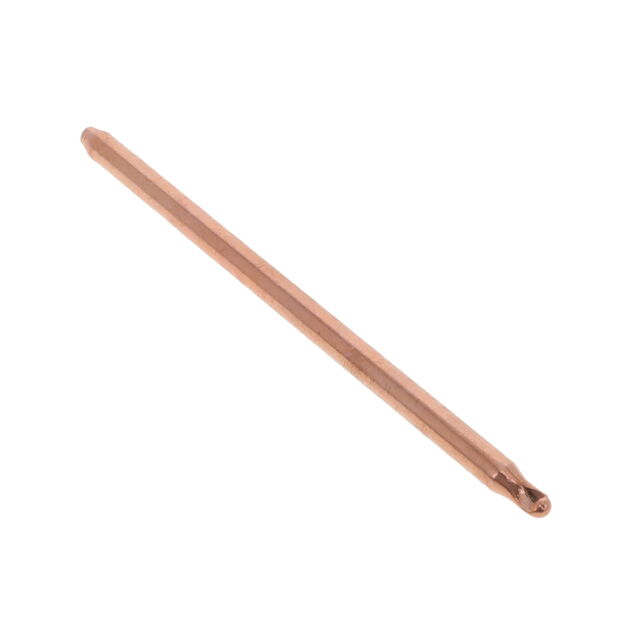

Boyd Laconia, LLC HP-CWS-R04-085-N	180 °C	-55 C	Copper	85 mm 91 W	Heat Pipe	Round	Sintered			85 mm	3.346 in	Epoxy or Solder

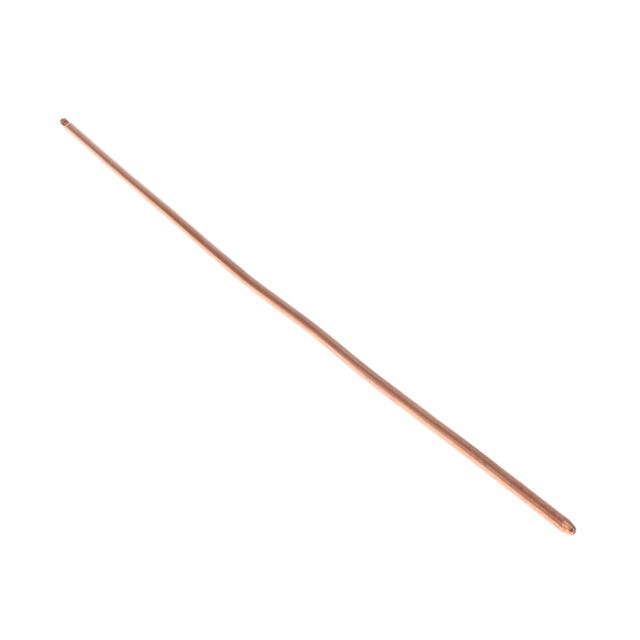

Boyd Laconia, LLC HP-CWS-R04-302-N	180 °C	-55 C	Copper	28 W 302 mm	Heat Pipe	Round	Sintered					Epoxy or Solder

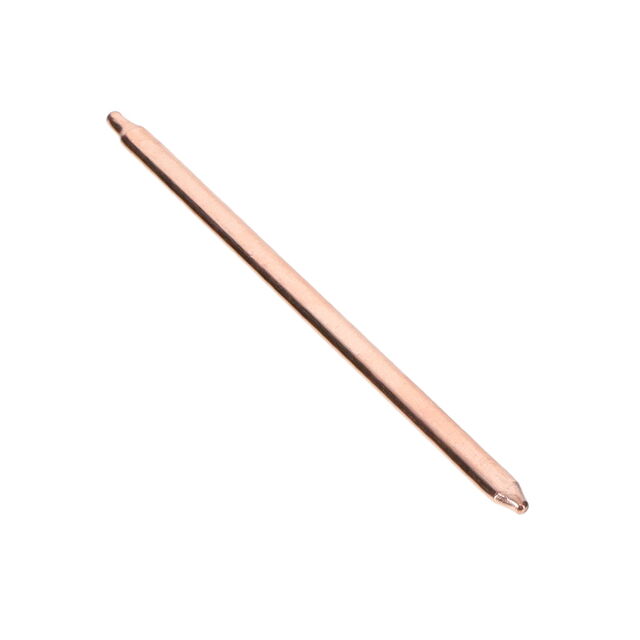

Boyd Laconia, LLC HP-CWS-F04X25-100-N	180 °C	-55 C	Copper	35 W 100 mm	Heat Pipe	Flat	Sintered			100 mm	3.937 in	Epoxy or Solder	2.5 mm	0.098 in	5 mm	0.197 in
Boyd Laconia, LLC HP-CWS-R04-149-N	180 °C	-55 C	Copper	43 W 149 mm	Heat Pipe	Round	Sintered					Epoxy or Solder					5.866 in	149 mm

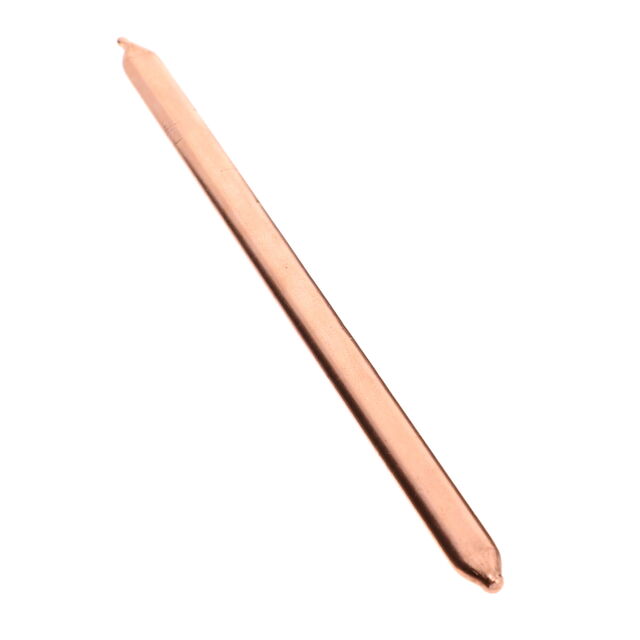

Boyd Laconia, LLC HP-CWS-F08X47-150-N	180 °C	-55 C	Copper	54 W 150 mm	Heat Pipe	Flat	Sintered			150 mm	5.906 in	Epoxy or Solder			10 mm	0.394 "			4.7 mm	0.185 in

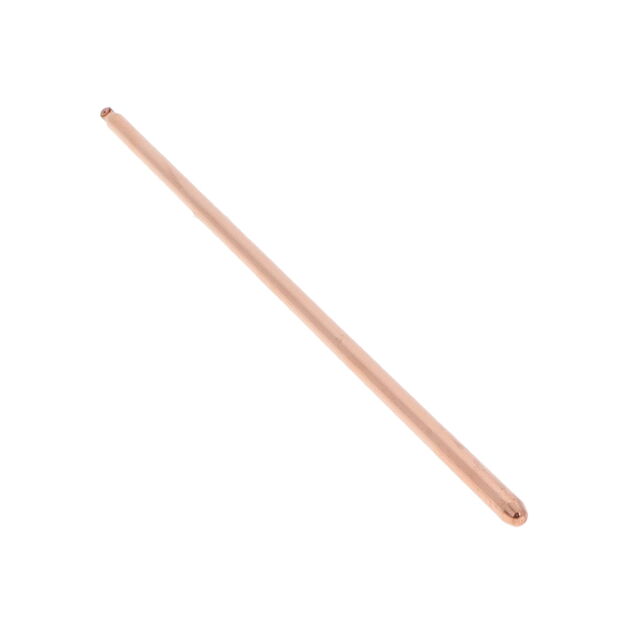

Boyd Laconia, LLC HP-CWS-R05-200-N	180 °C	-55 C	Copper	52 W 200 mm	Heat Pipe	Round	Sintered	0.197 in	5 mm	200 mm	7.874 in	Epoxy or Solder

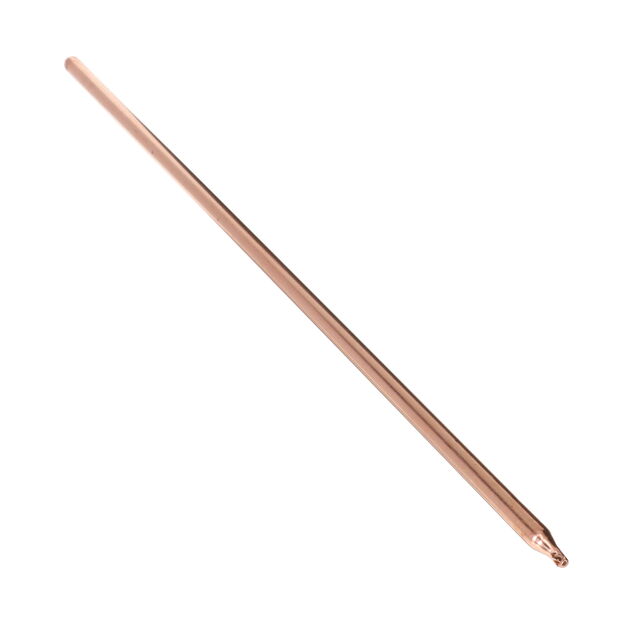

Boyd Laconia, LLC HP-CWS-R08-360-N	180 °C	-55 C	Copper	67 W 360 mm	Heat Pipe	Round	Sintered	0.315 in	8 mm			Epoxy or Solder					14.173 in	360 mm

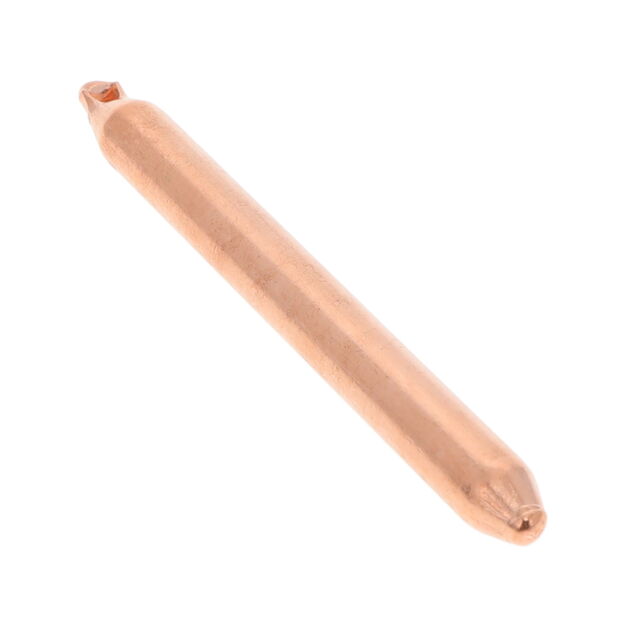

Boyd Laconia, LLC HP-CWS-R10-101-K	180 °C	-55 C	Copper		Heat Pipe	Round	Sintered	0.394 in	10 mm			Epoxy or Solder					3.976 in	101 mm
Boyd Laconia, LLC HP-CWS-R03-150-N	180 °C	-55 C	Copper	17 W 150 mm	Heat Pipe	Round	Sintered	0.118 in	3 mm	150 mm	5.906 in	Epoxy or Solder
