104141 Series
Manufacturer: Molex
Beta
⌘K

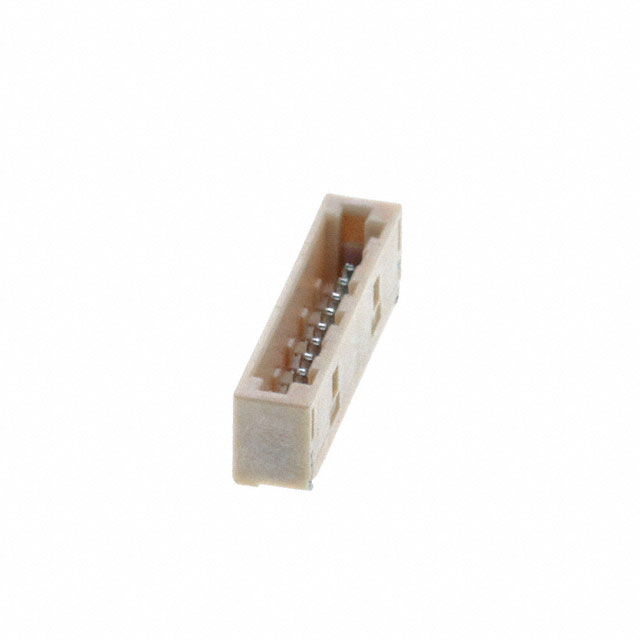

CONN HEADER SMD 10POS 1MM
| Part | Applications | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Fastening Type | Contact Material | Contact Shape | Insulation Height | Insulation Height | Contact Finish - Post | Number of Positions | Insulation Material | Mounting Type | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Termination | Number of Rows | Mated Stacking Heights | Shrouding | Number of Positions Loaded | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | General Purpose Medical | 1.4 mm | 0.055 in | Header | 118.1 µin | 3 µm | 0.039 in | 1 mm | Natural | UL94 V-0 | Latch Holder | Phosphor Bronze | Rectangular | 0.156 in | 3.96 mm | Tin | 10 | Liquid Crystal Polymer (LCP) Glass Filled Halogen Free | Surface Mount | Solder Retention | 3 µm | 118.1 µin | Male Pin | Solder | 1 | 5.97 mm | Shrouded - 4 Wall | All | Board to Cable/Wire |
