KTPS12 Series

Catalog

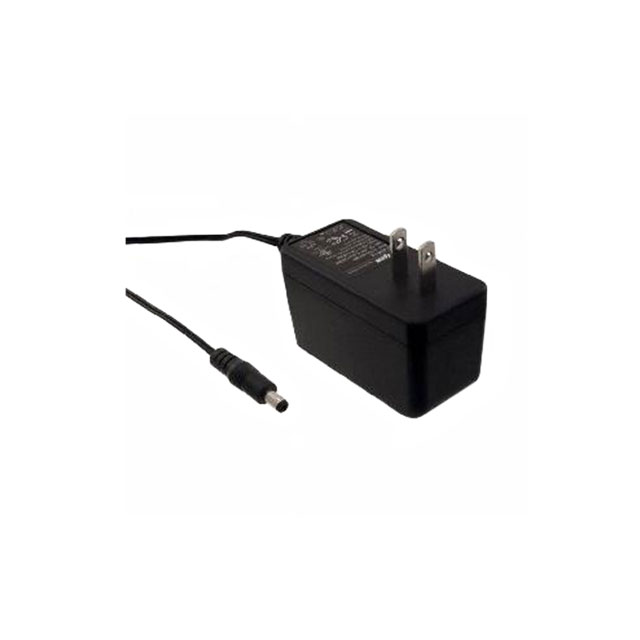

AC/DC WALL MOUNT ADAPTER 24V 12W

Part	Weight	Weight	Input Type	Standard Number	Input Connector	Applications	Power (Watts)	Efficiency	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Approval Agency	Form	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Region Utilized	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
Volgen + Furuno KTPS12-24005WA-VI-P1	0.278 lb	126.1 g	Fixed Blade	60950-1	NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	500 mA	IEC	Wall Mount	24 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-03320WA-VI-P1	0.278 lb	126.1 g	Fixed Blade	60950-1	NEMA 1-15P	ITE (Commercial)	6.6 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	2 A	IEC	Wall Mount	3.3 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-24005WA-VI-P2	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	500 mA	cUL PSE UL	Wall Mount	24 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-05025WA-VI-P1	0.278 lb	126.1 g	Fixed Blade	60950-1	NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	2.5 A	IEC	Wall Mount	5 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-09013WA-VI-P2	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	1.34 A	cUL PSE UL	Wall Mount	9 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-05025WA-VI-P2	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	2.5 A	cUL PSE UL	Wall Mount	5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-05020WA-VI-P2	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	10 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	2 A	cUL PSE UL	Wall Mount	5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
Volgen + Furuno KTPS12-08414WA-VI-P1R	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	1.43 A	cUL PSE UL	Wall Mount	8.4 V	Barrel Plug R/A			North America	Positive Center	100 VAC	240 VAC	40 °C	9.5 mm	5.5 mm	2.1 mm
Volgen + Furuno KTPS12-03320WA-VI-P1R	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	6.6 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	2 A	cUL PSE UL	Wall Mount	3.3 V	Barrel Plug R/A			North America	Positive Center	100 VAC	240 VAC	40 °C	9.5 mm	5.5 mm	2.1 mm
Volgen + Furuno KTPS12-13509WA-VI-P2	0.278 lb	126.1 g	Fixed Blade		NEMA 1-15P	ITE (Commercial)	12 W	Level VI	1.5 m	59 in	1.65 "	34 mm	1.34 in	42 mm	2.83 in	72 mm	0.89 A	cUL PSE UL	Wall Mount	13.5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	North America	Positive Center	100 VAC	240 VAC	40 °C
