321-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 16POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Connector Type	Insulation Color	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Post	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Contact Material - Mating	Pitch - Post	Pitch - Post	Housing Material	Type	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Post
Mill-Max Manufacturing Corp. 321-13-116-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	16	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-124-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	24	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-111-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	11	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C

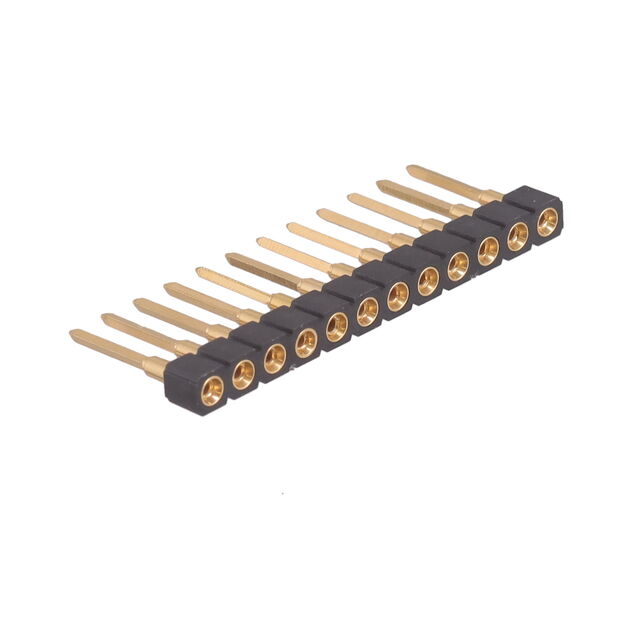

Mill-Max Manufacturing Corp. 321-13-112-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	12	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-145-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	45	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-162-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	62	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-143-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	43	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-127-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	27	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-123-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	10 Áin	0.25 çm	Female Socket	23	0.1 "	2.54 mm	Gold	Through Hole	Receptacle	Black	6.35 mm	0.25 in	3 A	Gold	Wire Wrap	Push-Pull	0.76 Ám	30 Áin	All	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 321-13-132-41-001000				10 Áin	0.25 çm			0.1 "	2.54 mm	Gold	Through Hole					3 A	Gold	Wire Wrap		0.76 Ám	30 Áin			-55 C	125 °C	6.6 mm	0.26 in	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	SIP	32	1 x 32	Brass Alloy
