CZRER52 Series

Catalog

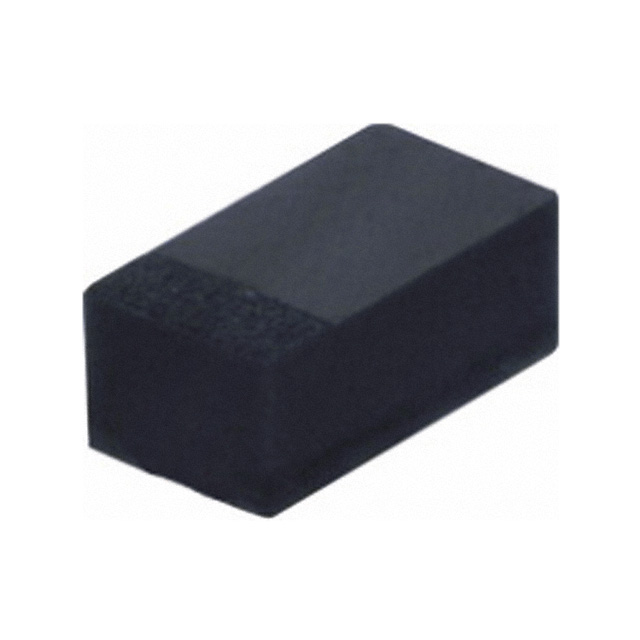

DIODE ZENER 30V 150MW 0503

Part	Voltage - Zener (Nom) (Vz)	Current - Reverse Leakage @ Vr	Tolerance	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package	Power - Max [Max]	Mounting Type	Impedance (Max) (Zzt) [Max]
Comchip Technology CZRER52C30	30 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount
Comchip Technology CZRER52C18	18 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	50 Ohms
Comchip Technology CZRER52C13	13 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	25 Ohms
Comchip Technology CZRER52C36	36 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	90 Ohms
Comchip Technology CZRER52C2V4	2.4 V	100 µA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	85 Ohms
Comchip Technology CZRER52C33	33 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount
Comchip Technology CZRER52C27	27 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount

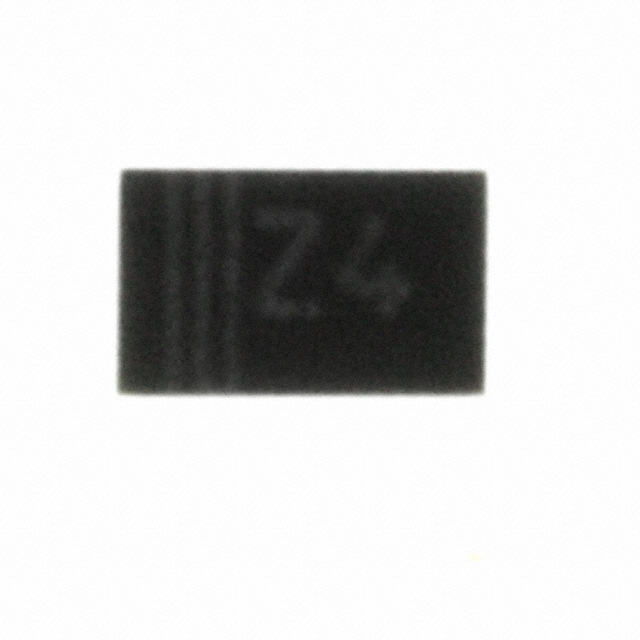

Comchip Technology CZRER52C3	3 V	50 ÁA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	95 Ohms
Comchip Technology CZRER52C2V7	2.7 V	75 µA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	83 Ohms
Comchip Technology CZRER52C7V5	7.5 V	100 nA	5 %	900 mV	-55 °C	125 °C	1308 Metric	0503	150 mW	Surface Mount	7 Ohms
