T12N Series

Catalog

SPIRAL WRAP, .12" (3.2MM) X 500, NYLON, ROHS COMPLIANT: YES

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Type Attributes	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Wall Thickness	Wall Thickness	Material Flammability Rating	Color	Type	Environment Protection	Length	Length

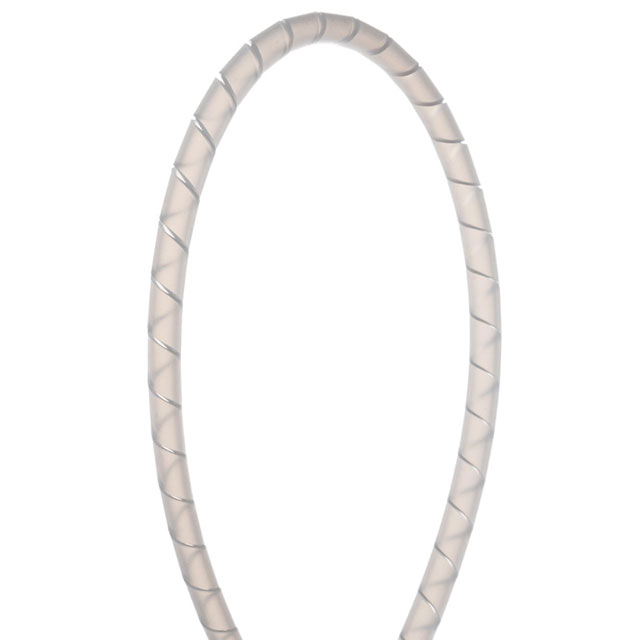

Panduit Corp T12N-D	3.18 mm	0.125 in	12.7 mm	0.5 in	Abrasion Resistant	Harness	500 '	152.4 m	65 °C	-40 °C	0.38 mm	0.015 in	UL94 HB	Natural	Spiral Wrap
Panduit Corp T12N-C0	3.18 mm	0.125 in	12.7 mm	0.5 in	Abrasion Resistant	Harness			65 °C	-40 °C	0.38 mm	0.015 in	UL94 HB	Black	Spiral Wrap	Weather Resistant	100 ft	30.48 m
Panduit Corp T12N-C	3.18 mm	0.125 in	12.7 mm	0.5 in	Abrasion Resistant	Harness			65 °C	-40 °C	0.38 mm	0.015 in	UL94 HB	Natural	Spiral Wrap		100 ft	30.48 m
