74LVC11 Series

Catalog

AND GATE 3-ELEMENT 3-IN CMOS 14-PIN SO TUBE

Part	Current - Output High, Low	Package / Case [x]	Package / Case [y]	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Mounting Type	Number of Inputs	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Input Logic Level - High [Max] [custom]	Input Logic Level - High [Min] [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Logic Type	Package / Case [custom]	Package / Case [custom]
Freescale Semiconductor - NXP 74LVC11D,112	24 mA	0.154 in	3.9 mm	14-SOIC	0.8 V	0.12 V	Surface Mount	3	14-SO	125 °C	-40 °C	3	2 V	1.08 V	1.2 V	3.6 V	6.2 ns	10 µA	AND Gate

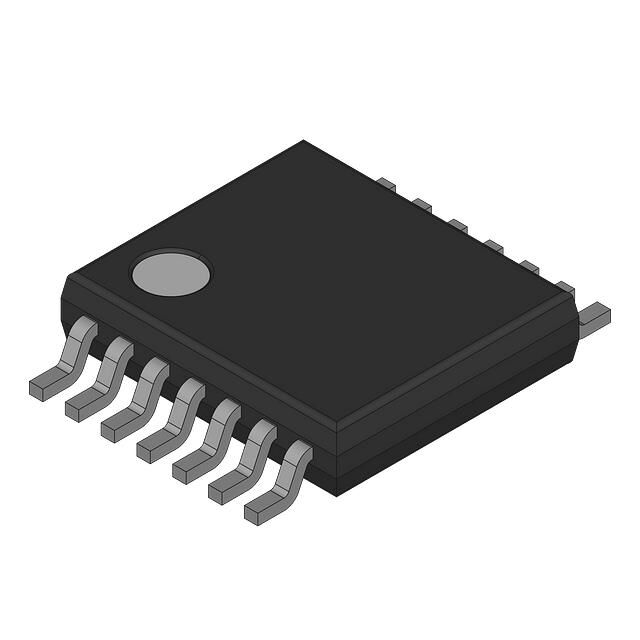

Freescale Semiconductor - NXP 74LVC11PW,112
Freescale Semiconductor - NXP 74LVC11PW,118	24 mA			14-TSSOP	0.8 V	0.12 V	Surface Mount	3	14-TSSOP	125 °C	-40 °C	3	2 V	1.08 V	1.2 V	3.6 V	6.2 ns	40 µA	AND Gate	0.173 "	4.4 mm
