2213865 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

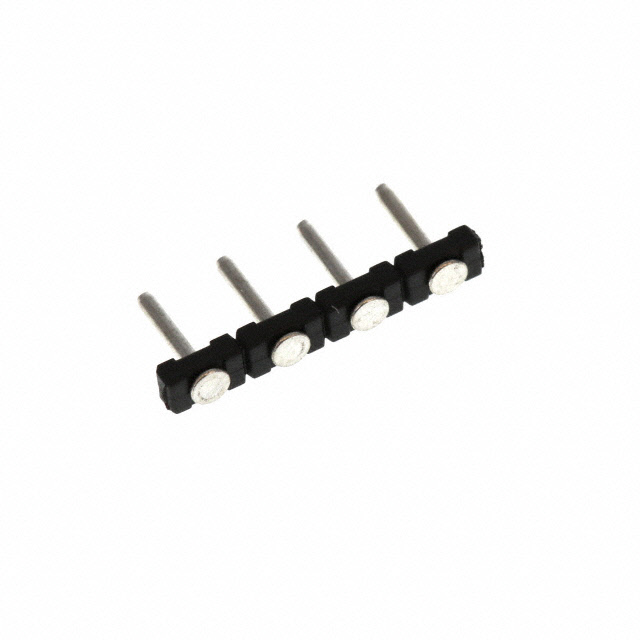

5.00MM PTR TB PIN STRIP, 4 POS
| Part | Pitch [x] | Pitch [x] | Housing Material | Termination Style | Number of Levels | Mounting Type | Type | Positions Per Level | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Material Flammability Rating | Header Orientation | Current - UL | Contact Material | Number of Positions | Voltage - UL | Contact Mating Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5 mm | 0.197 in | Glass Filled Nylon 4/6 Polyamide (PA46) | Solder | 1 | Surface Mount | Header Male Pins | 4 | 125 °C | -40 °C | 2.1 mm | 0.083 " | UL94 V-0 | Vertical | 10 A | Brass | 4 | 300 V | Tin |
