LF-3011 Series

Catalog

DISPLAYS SEGMENTED PANEL 1DIGIT 8LED RED 10-PIN SMD

Part	Package / Case	Number of Characters	Current - Test	Common Pin	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Display Type	Wavelength - Peak	Millicandela Rating	Color	Digit/Alpha Size	Digit/Alpha Size
Rohm Semiconductor LF-3011VA	10-SMD Gull Wing	1	10 mA	Common Anode	11 mm	0.433 in	0.268 "	6.8 mm	0.197 "	5 mm	2 V	320 mW	7-Segment	650 nm	10 mcd	Red	0.32 in	8 mm

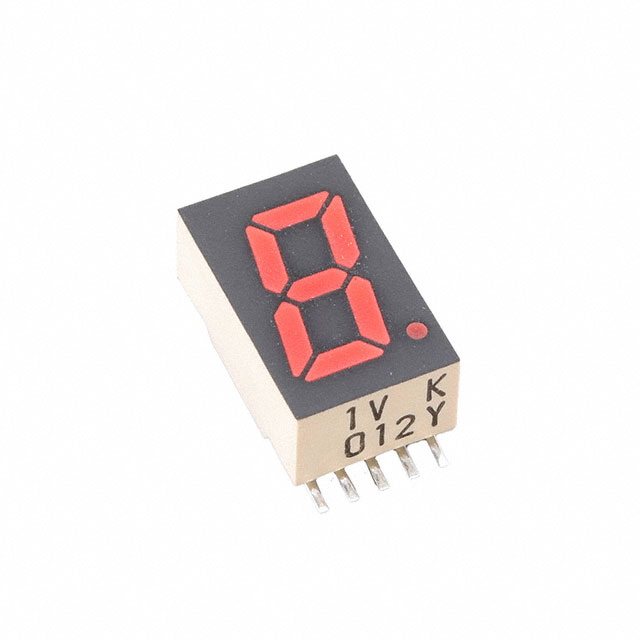

Rohm Semiconductor LF-3011VK	10-SMD Gull Wing	1	10 mA	Common Cathode	11 mm	0.433 in	0.268 "	6.8 mm	0.197 "	5 mm	2 V	320 mW	7-Segment	650 nm	10 mcd	Red	0.32 in	8 mm
Rohm Semiconductor LF-3011MA	10-SMD Gull Wing	1	10 mA	Common Anode	11 mm	0.433 in	0.268 "	6.8 mm	0.197 "	5 mm	2.1 V	480 mW	7-Segment	563 nm	10 mcd	Green	0.32 in	8 mm
