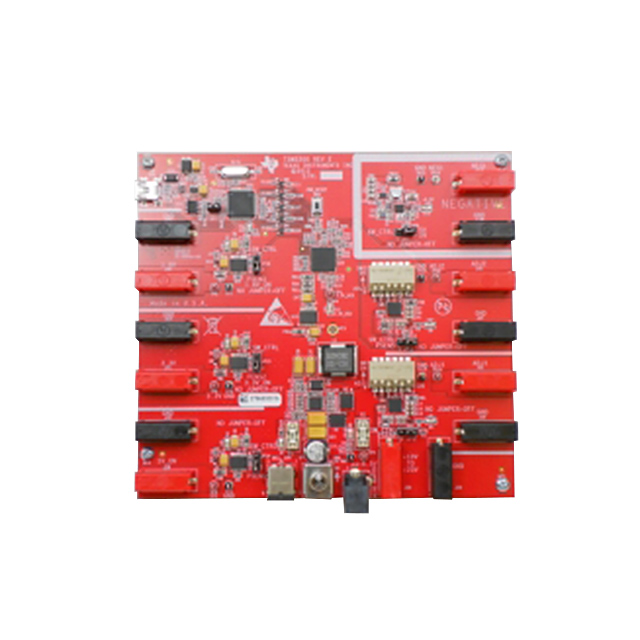

TSW2200 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MODULE MULTI-OUTPUT PS
| Part | Utilized IC / Part | Main Purpose | Voltage - Output | Voltage - Output [Max] | Voltage - Output [Min] | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Current - Output | Board Type | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | TPS40055 TPS76xx UCD90120A | DC/DC Step Down with LDO | -5 V 1.8 V 3.3 V 5 V | 6 VDC | 0.8 V | Board(s) | 20 V | 10 V | Buck | 1 A 360 mA | Fully Populated | 6 | Non-Isolated |
