LM3503 Series

Catalog

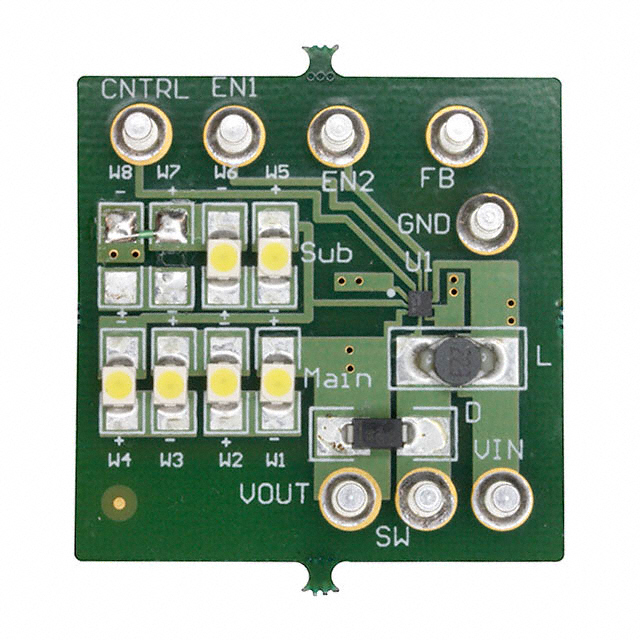

EVAL BOARD FOR LM3503

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Mounting Type	Voltage - Supply (Max)	Topology	Applications	Voltage - Supply (Min) [Min]	Number of Outputs	Frequency	Dimming	Current - Output / Channel	Type	Voltage - Output
Texas Instruments LM3503ITL-25EV
Texas Instruments LM3503ITL-25/NOPB	85 °C	-40 °C	10-WFBGA DSBGA	10-TµSMD (1.9x2.07)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	600 mA	DC DC Regulator	25 V

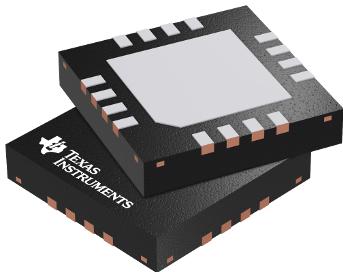

Texas Instruments LM3503SQX-44	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	750 mA	DC DC Regulator	44 V
Texas Instruments LM3503ITLX-35/NOPB	85 °C	-40 °C	10-WFBGA DSBGA	10-TµSMD (1.9x2.07)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	750 mA	DC DC Regulator	35 V
Texas Instruments LM3503SQ-16/NOPB	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	400 mA	DC DC Regulator	16 V
Texas Instruments LM3503SQ-35	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	750 mA	DC DC Regulator	35 V
Texas Instruments LM3503SQ-44/NOPB	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	750 mA	DC DC Regulator	44 V
Texas Instruments LM3503SQX-35/NOPB	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	750 mA	DC DC Regulator	35 V
Texas Instruments LM3503SQ-25/NOPB	85 °C	-40 °C	16-WFQFN Exposed Pad	16-WQFN (4x4)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	600 mA	DC DC Regulator	25 V
Texas Instruments LM3503ITLX-25/NOPB	85 °C	-40 °C	10-WFBGA DSBGA	10-TµSMD (1.9x2.07)	Surface Mount	5.5 V	Step-Up (Boost)	Backlight	2.5 V	2	1 MHz	Analog PWM	600 mA	DC DC Regulator	25 V
