1065-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Socket Depth	Socket Depth	Contact Material	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 1065-0-15-80-30-27-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 1065-0-15-80-30-14-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 1065-0-15-01-30-14-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 1065-0-15-15-30-27-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 1065-0-15-01-30-02-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 1065-0-15-01-30-27-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	30 Áin	0.76 Ám

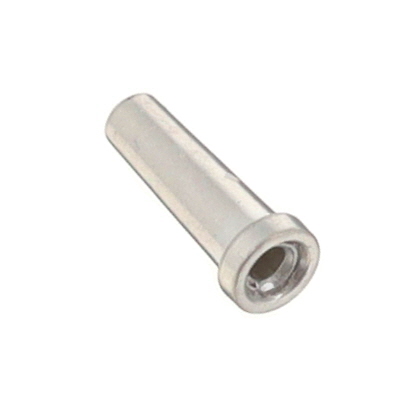

Mill-Max Manufacturing Corp. 1065-0-15-80-30-84-10-0	-55 C	125 °C	0.19 in	4.83 mm	0.13 in	3.3 mm	Beryllium Copper	Tin	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder	0.072 "	1.83 mm	0.055 in	1.4 mm	No Tail	100 µin	2.54 µm
