ADS7042 Series

12-Bit 1MSPS Ultra-Low-Power Ultra-Small-Size SAR ADC With SPI Interface

Catalog

12-Bit 1MSPS Ultra-Low-Power Ultra-Small-Size SAR ADC With SPI Interface

Part	Function	Utilized IC / Part	Contents	Platform	Type	Supplied Contents	Data Interface	Sampling Rate (Per Second)	Power (Typ) @ Conditions	Number of A/D Converters	Number of Bits	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Configuration	Reference Type	Supplier Device Package	Architecture	Package / Case	Number of Inputs	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - S/H:ADC	Mounting Type

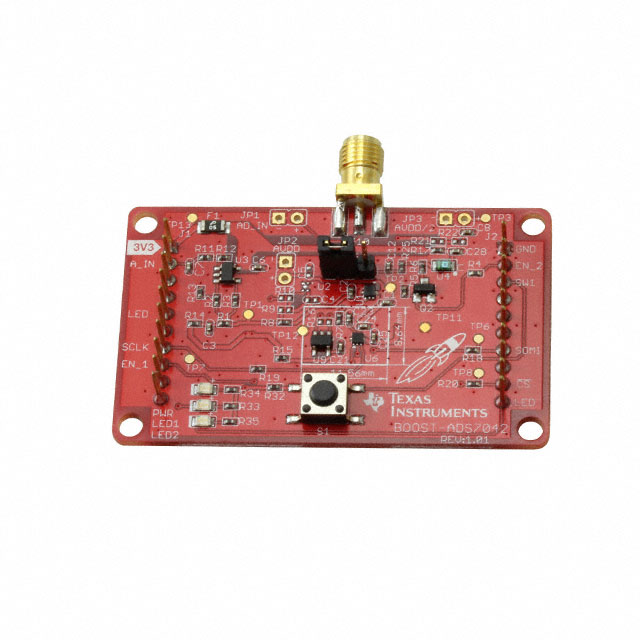

Texas Instruments BOOST-ADS7042	Analog to Digital Converter (ADC)	ADS7042	Board(s)	LaunchPad™	Data Acquisition

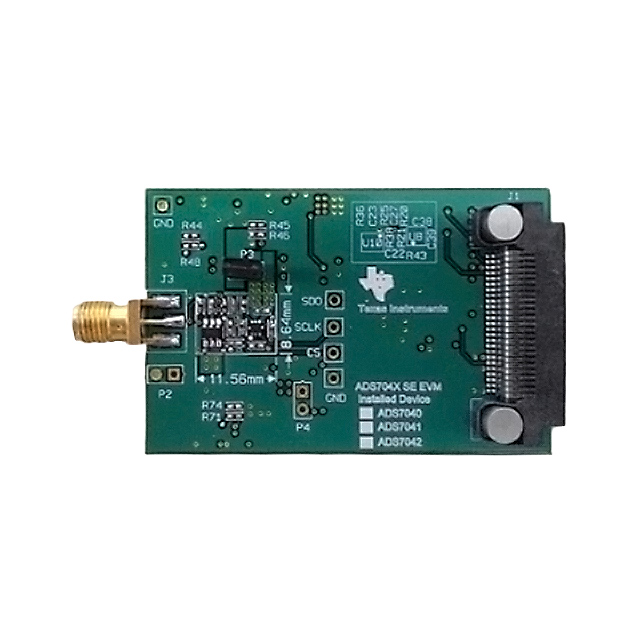

Texas Instruments ADS7042EVM-PDK		ADS7042				Board(s) Cable(s)	SPI	1 M	0.234 mW	1	12 bits
Texas Instruments ADS7042IRUGR							SPI	1 M		1	12 bits	1.65 V	3.6 V	1.65 V	3.6 V	S/H-ADC	Supply	8-X2QFN (1.5x1.5)	SAR	8-XFQFN	1	Single Ended	125 °C	-40 °C	1:1	Surface Mount

Catalog

12-Bit 1MSPS Ultra-Low-Power Ultra-Small-Size SAR ADC With SPI Interface

Key Features

• Industry’s First SAR ADC with Nanowatt Power Consumption:234 µW at 1 MSPS with 1.8-V AVDD690 µW at 1 MSPS with 3-V AVDD69 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:12-Bit Resolution with NMC±1-LSB (Max) DNL and INL70-dB SNR with 3-V AVDD–80-dB THD with 3-V AVDDUnipolar Input Range: 0 V to AVDDIntegrated Offset CalibrationSPI™-Compatible Serial Interface: 16 MHzJESD8-7A Compliant Digital I/OIndustry’s First SAR ADC with Nanowatt Power Consumption:234 µW at 1 MSPS with 1.8-V AVDD690 µW at 1 MSPS with 3-V AVDD69 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:12-Bit Resolution with NMC±1-LSB (Max) DNL and INL70-dB SNR with 3-V AVDD–80-dB THD with 3-V AVDDUnipolar Input Range: 0 V to AVDDIntegrated Offset CalibrationSPI™-Compatible Serial Interface: 16 MHzJESD8-7A Compliant Digital I/O

Description

The ADS7042 is a 12-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7042 complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V). The ADS7042 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications. The ADS7042 is a 12-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7042 complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V). The ADS7042 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications.
