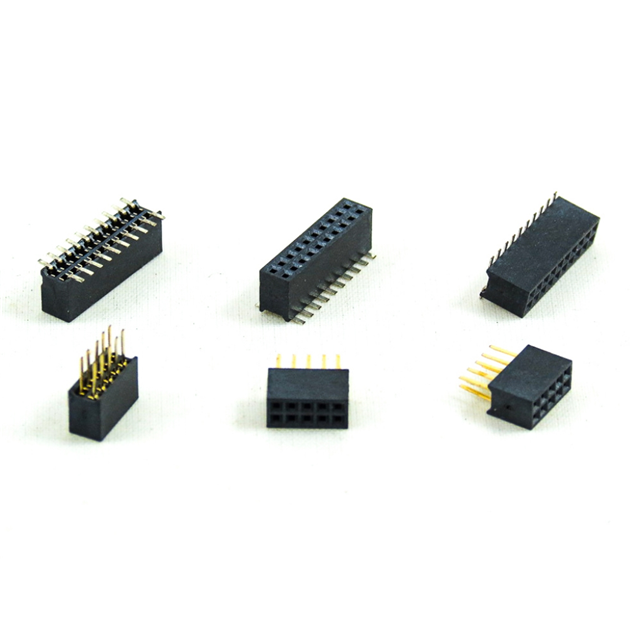

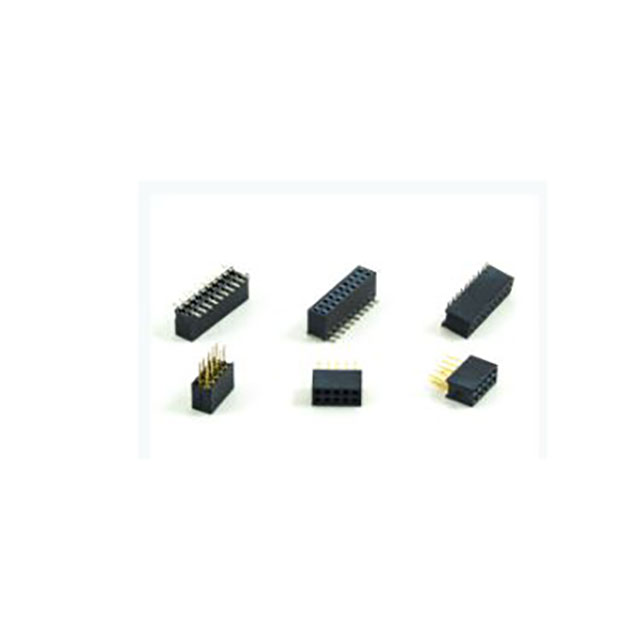

2242 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, 0.50MM PITCH, 2 ROW

Part	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Material	Termination	Insulation Height	Insulation Height	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Features	Contact Finish - Mating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Post	Contact Type	Number of Positions Loaded	Number of Rows [custom]	Material Flammability Rating
Oupiin 2242-2X08C00DU-P	Square	Flash	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	4.3 mm	0.169 "	Surface Mount	Socket	1.27 mm	0.05 in	Black	Pick and Place	Gold	16	0.05 in	1.27 mm	Flash	-65 ░C	125 °C	Push-Pull	Gold	Female Socket	All	2	UL94 V-0
Oupiin 2242-2X34C00DU	Square	Flash	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	4.3 mm	0.169 "	Surface Mount	Socket	1.27 mm	0.05 in	Black		Gold	68 positions	0.05 in	1.27 mm	Flash	-65 ░C	125 °C	Push-Pull	Gold	Female Socket	All	2	UL94 V-0
Oupiin 2242-2X25G00DT-P	Square	Flash	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	4.3 mm	0.169 "	Surface Mount	Socket	1.27 mm	0.05 in	Black	Pick and Place	Gold	50	0.05 in	1.27 mm	Flash	-65 ░C	125 °C	Push-Pull	Gold	Female Socket	All	2	UL94 V-0
Oupiin 2242-2X08C00DT-P	Square	Flash	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	4.3 mm	0.169 "	Surface Mount	Socket	1.27 mm	0.05 in	Black	Pick and Place	Gold	16	0.05 in	1.27 mm	Flash	-65 ░C	125 °C	Push-Pull	Gold	Female Socket	All	2	UL94 V-0
