LDA10F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 5V 10W
| Part | Voltage - Isolation | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Features | Type | Number of Outputs | Mounting Type | Power (Watts) | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Applications | Standard Number | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 3000 V | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Enclosed | 1 | Chassis Mount | 10 W | 72 % | 125 mm | 4.92 in | 1.26 " | 2.24 in | 32 mm | 57 mm | ITE (Commercial) | 60950-1 | 5 V | 264 VAC 370 VDC | 85 VAC 110 VDC |
 Cosel USA, Inc. | 3000 V | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 10 W | 72 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 5 V | 264 VAC 370 VDC | 85 VAC 110 VDC |
Cosel USA, Inc. | 3000 V | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Enclosed | 1 | Chassis Mount | 6 W | 68 % | 125 mm | 4.92 in | 1.26 " | 2.24 in | 32 mm | 57 mm | ITE (Commercial) | 60950-1 | 3 V | 264 VAC 370 VDC | 85 VAC 110 VDC |

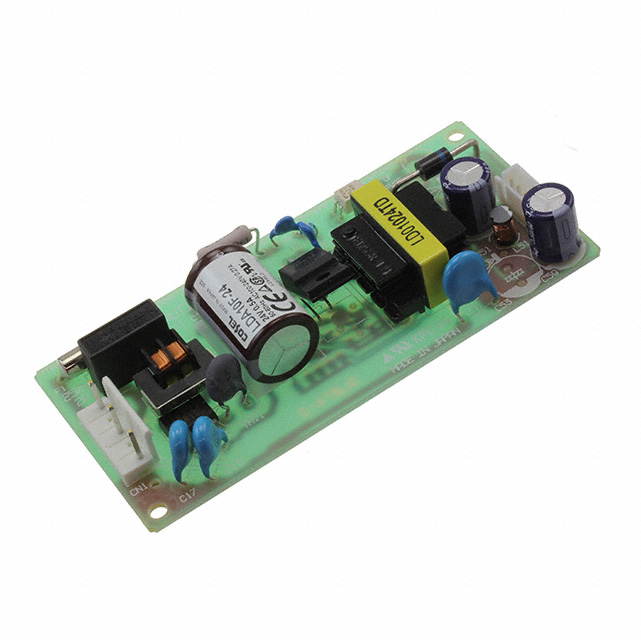

 Cosel USA, Inc. | 3000 V | 500 mA | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 12 W | 78 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 24 V | 264 VAC 370 VDC | 85 VAC 110 VDC |
Cosel USA, Inc. | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Enclosed | 1 | Chassis Mount | 10 W | 72 % | 125 mm | 4.92 in | 1.26 " | 2.24 in | 32 mm | 57 mm | ITE (Commercial) | 60950-1 | 5 V | 264 VAC 370 VDC | 85 VAC 110 VDC | |
Cosel USA, Inc. | 3000 V | 700 mA | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Enclosed | 1 | Chassis Mount | 11 W | 74 % | 125 mm | 4.92 in | 1.26 " | 2.24 in | 32 mm | 57 mm | ITE (Commercial) | 60950-1 | 15 V | 264 VAC 370 VDC | 85 VAC 110 VDC |
Cosel USA, Inc. | 900 mA | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 11 W | 74 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 12 V | 264 VAC 370 VDC | 85 VAC 110 VDC | |
Cosel USA, Inc. | 500 mA | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 12 W | 78 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 24 V | 264 VAC 370 VDC | 85 VAC 110 VDC | |

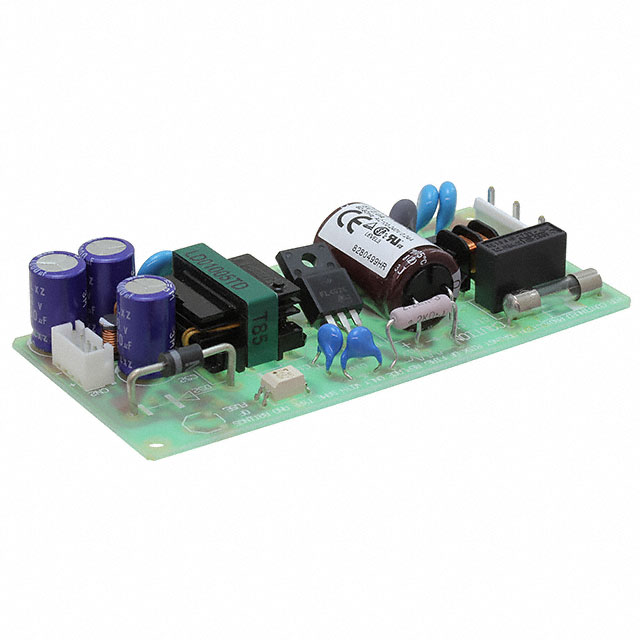

Cosel USA, Inc. | 3000 V | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 10 W | 72 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 5 V | 264 VAC 370 VDC | 85 VAC 110 VDC |

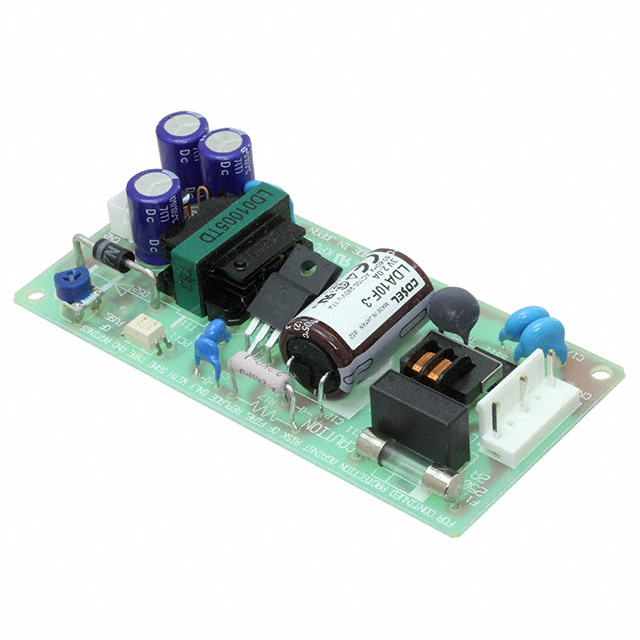

 Cosel USA, Inc. | 3000 V | 2 A | -10 °C | 60 °C | cCSAus CE cURus TUV | Adjustable Output Universal Input | Open Frame | 1 | Chassis Mount | 6 W | 68 % | 105 mm | 4.13 in | 0.83 " | 1.97 in | 21 mm | 50 mm | ITE (Commercial) | 60950-1 | 3 V | 264 VAC 370 VDC | 85 VAC 110 VDC |
