UWE-24 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 120 W, 1 OUTPUT, 24 V, 5 A

Part	Efficiency	Features	Voltage - Output 1	Package / Case	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Supplier Device Package	Current - Output (Max) [Max]
Murata Electronics UWE-24/5-Q12PB-C	92 %	Baseplate Remote On/Off Remote Sense	24 V	Eighth Brick	Isolated Module	36 V	2250 VDC	Through Hole	2.3 in	13.2 mm	0.52 in	22.9 mm	58.4 mm	0.9 in	5 A	1	120 W	9 V	Active High Enable	-40 °C	85 °C	ITE (Commercial)	Eighth Brick
Murata Electronics UWE-24/3-Q12PB-C		OCP OTP OVP Remote On/Off SCP UVLO	24 V	8-DIP Module 1/8 Brick	Isolated Module	36 V	1.5 kV	Through Hole	2.3 in	8.6 mm	0.34 in	22.9 mm	58.4 mm	0.9 in		1	72 W	9 V	Active High Enable	-40 C	85 °C	ITE (Commercial)		3 A

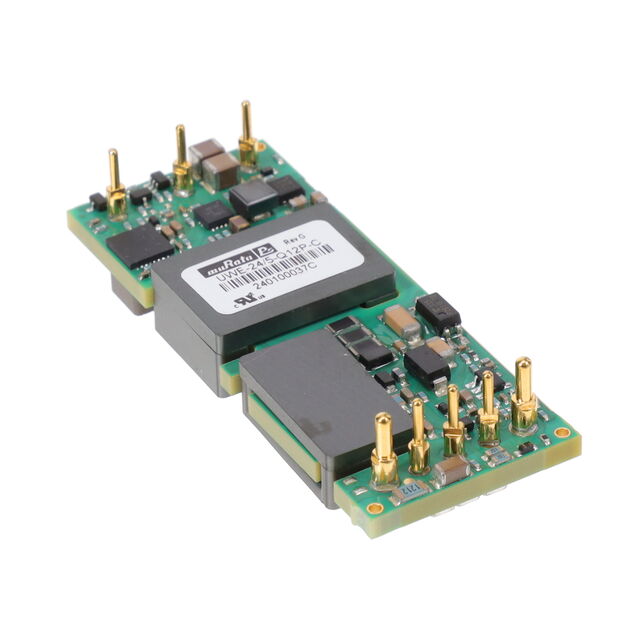

Murata Electronics UWE-24/5-Q12P-C	92 %		24 V	Eighth Brick	Isolated Module	36 V	2250 VDC	Through Hole	2.3 in	10.2 mm	0.4 "	22.9 mm	58.4 mm	0.9 in	5 A	1	120 W	9 V	Active High Enable	-40 °C	85 °C	ITE (Commercial)	Eighth Brick
Murata Electronics UWE-24/3-Q12N-C		OCP OTP OVP Remote On/Off SCP UVLO	24 V	8-DIP Module 1/8 Brick	Isolated Module	36 V	1.5 kV	Through Hole	2.3 in	8.6 mm	0.34 in	22.9 mm	58.4 mm	0.9 in		1	72 W	9 V	Active Low Enable	-40 C	85 °C	ITE (Commercial)		3 A
Murata Electronics UWE-24/5-Q12N-C	92 %		24 V	Eighth Brick	Isolated Module	36 V	2250 VDC	Through Hole	2.3 in	10.2 mm	0.4 "	22.9 mm	58.4 mm	0.9 in	5 A	1	120 W	9 V	Active Low Enable	-40 °C	85 °C	ITE (Commercial)	Eighth Brick
