005124 Series
Manufacturer: Molex
Beta
⌘K
CONN D-TYPE RCPT 160POS R/A SLDR
| Part | Dielectric Material | Contact Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Type | Contact Finish | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Termination | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions | Connector Style | Shell Material, Finish | Type | Termination Finish Thickness | Termination Finish Thickness | Contact Form | Termination Finish | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

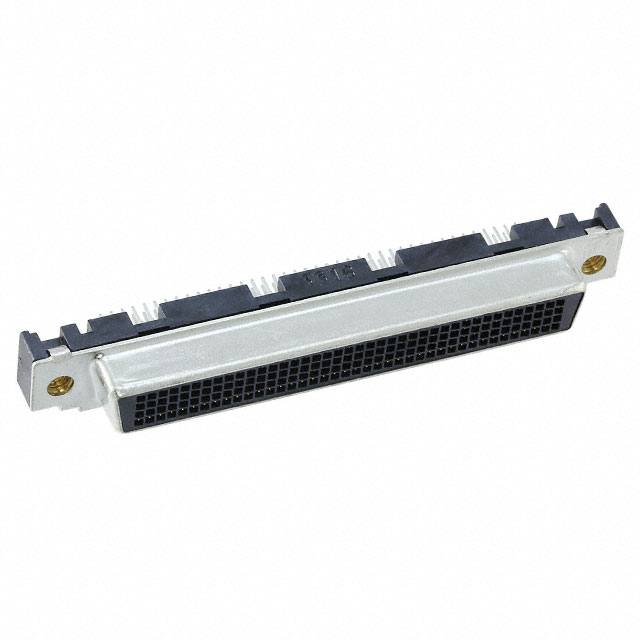

 Molex | Liquid Crystal Polymer (LCP) Glass Filled | Beryllium Copper | 40 V | 80 °C | -20 ░C | Black | Signal | Gold | UL94 V-0 | 0.05 | 0.05 | Board Lock Shielded | Solder | Housing/Shell (M3) | Right Angle Through Hole | 30 Áin | 0.76 Ám | Receptacle Female Sockets | 160 | Board to Board D-Type Matrix | |||||||

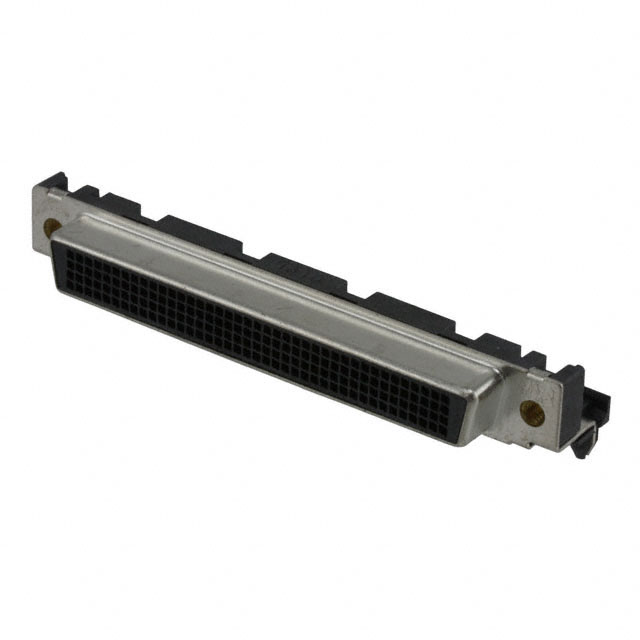

 Molex | Liquid Crystal Polymer (LCP) Glass Filled | Beryllium Copper | 40 V | 80 °C | -20 ░C | Black | Signal | Gold | UL94 V-0 | 0.05 | 0.05 | Shielded | Solder | Housing/Shell (M3) | Panel Mount Through Hole | 30 Áin | 0.76 Ám | Receptacle Female Sockets | 160 | Board to Board D-Type Matrix | Nickel Plated Steel | ||||||

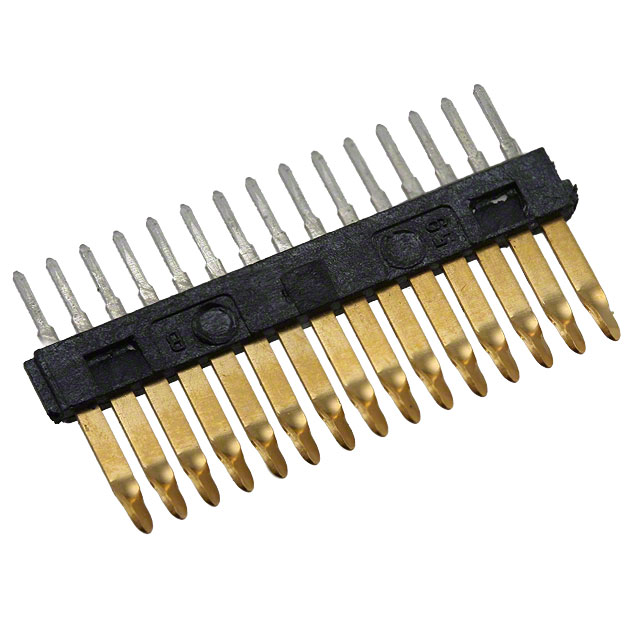

 Molex | Phosphor Bronze | Male Pin | Gold | Matrix Terminal Strip | 30 Áin | 0.76 Ám | Signal | 100 µin | 2.54 µm | Stamped | Tin | PCB Solder |
