9101-9573 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

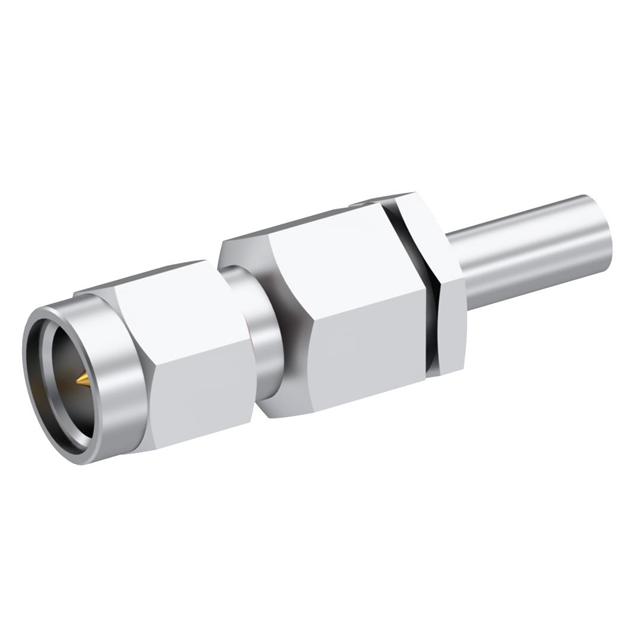

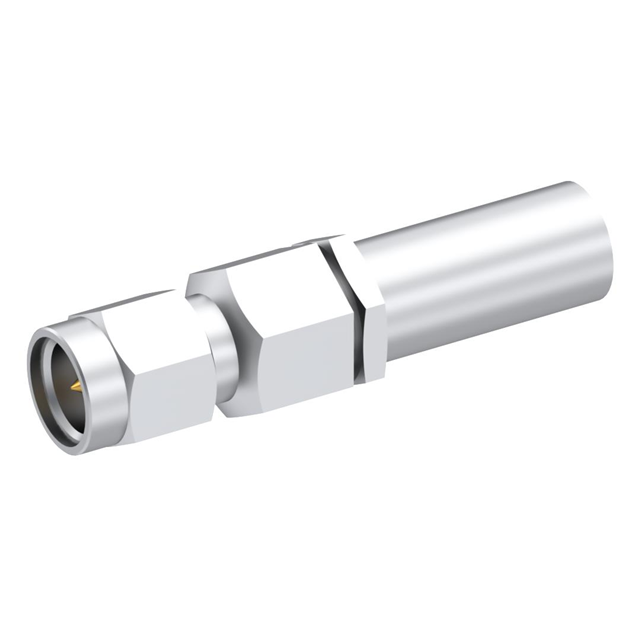

SMA / STRAIGHT PLUG MALE CRIMP T
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Fastening Type | Connector Style | Frequency - Max [Max] | Housing Color | Cable Group | Center Contact Material | Contact Termination | Mounting Type | Connector Type | Impedance | Number of Ports | Shield Termination | Voltage Rating | Cable Group | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Threaded | SMA | 12.4 GHz | Silver | 223 M17/158 M17/60 M17/84 RG-142 | Beryllium Copper | Crimp | Free Hanging (In-Line) | Plug Male Pin | 50 Ohms | 1 | Crimp | |||
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Threaded | SMA | 12.4 GHz | Silver | 179 316 M17/113 M17/119 M17/172 M17/189 RG-174 | Beryllium Copper | Crimp | Free Hanging (In-Line) | Plug Male Pin | 50 Ohms | 1 | Crimp | 335 V | ||
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Threaded | SMA | 18 GHz | RG-58 | Beryllium Copper | Crimp | Free Hanging (In-Line) | Plug Male Pin | 50 Ohms | 1 | Crimp | 141 | |||
Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Threaded | SMA | 18 GHz | RD-316 RG-316DS | Beryllium Copper | Crimp | Free Hanging (In-Line) | Plug Male Pin | 50 Ohms | 1 | Crimp | ||||
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Threaded | SMA | Gold | 195 M17/95 RG-180 | Beryllium Copper | Crimp | Free Hanging (In-Line) | Plug Male Pin | 50 Ohms | 1 | Crimp | Gold |
