PR20B05H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

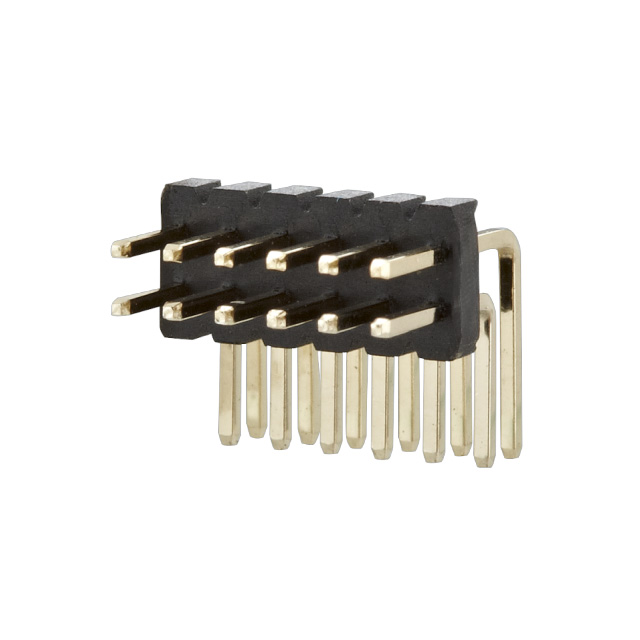

PIN HEADER, THR, DUAL ROW, 1.27
| Part | Insulation Height [z] | Insulation Height [z] | Number of Positions | Contact Length - Post [custom] | Contact Length - Post | Connector Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Type | Shrouding | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Number of Positions Loaded | Termination | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Number of Rows [custom] | Contact Material | Fastening Type | Mounting Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 3.46 mm | 0.136 in | 10 | 0.11 in | 2.79 mm | Header | Gold | 1.27 mm | 0.05 in | Male Pin | Unshrouded | Polyethylene | -40 C | 105 ░C | Flash | All | Solder | 3 mm | 0.118 in | 0.05 in | 1.27 mm | Black | 2 | Copper Alloy | Push-Pull | Right Angle Through Hole | Square |
