305-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Material	Number of Positions	Contact Type	Termination	Color	Number of Positions/Bay/Row [custom]	Read Out	Number of Rows [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

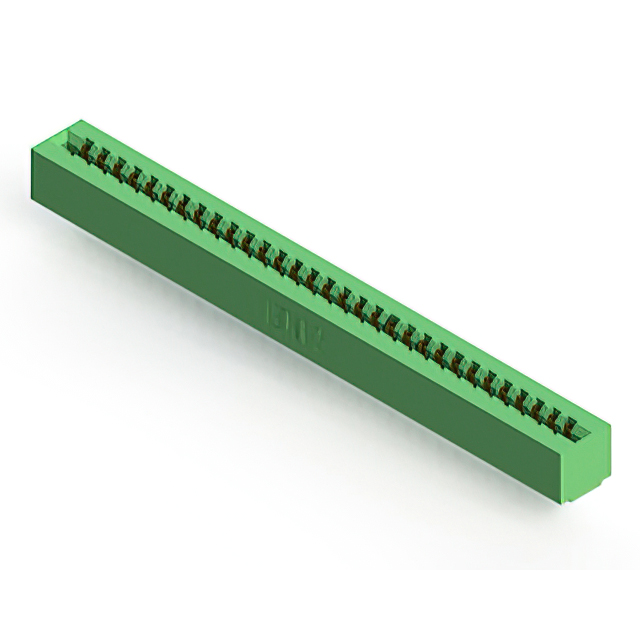

EDAC Inc. 305-062-521-501	2	Polyester Thermoplastic	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C

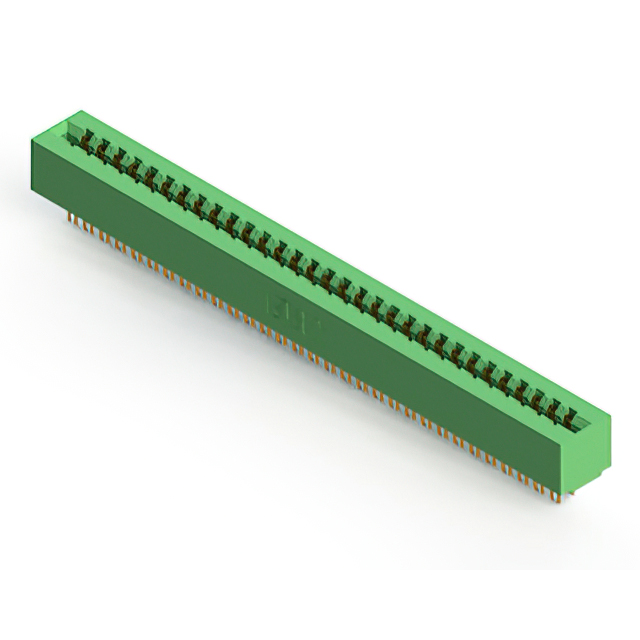

EDAC Inc. 305-062-500-201	2	Polyester Thermoplastic	Free Hanging (In-Line)	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder Eyelet(s)	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C

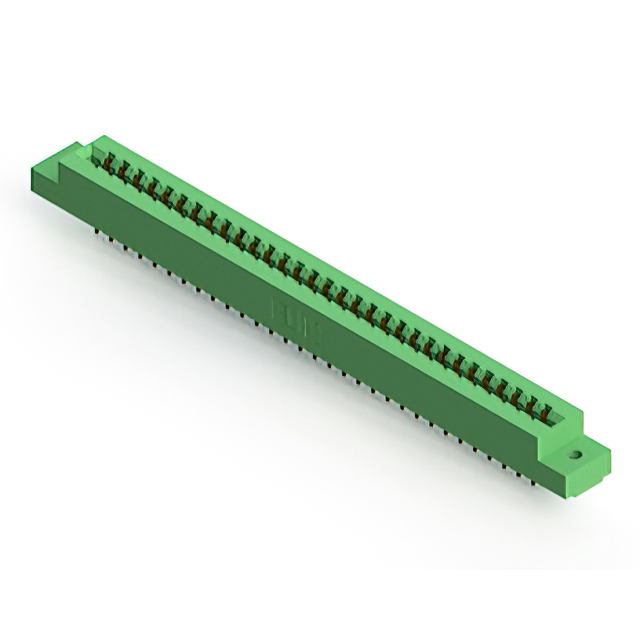

EDAC Inc. 305-062-556-202	2	Polyester Thermoplastic	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Card Extender
EDAC Inc. 305-062-500-503	2	Polyester Thermoplastic	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder Eyelet(s)	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Floating Bobbin Flush Mount	2.95 mm	0.116 "

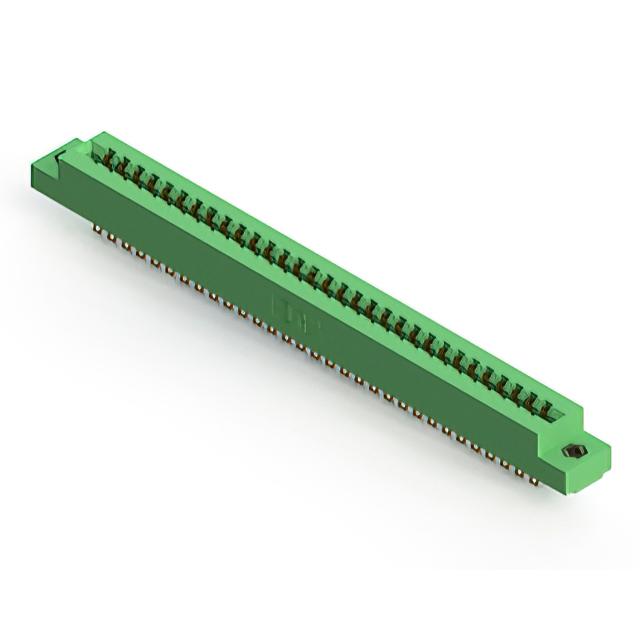

EDAC Inc. 305-062-555-207	2	Polyester Thermoplastic	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Card Extender

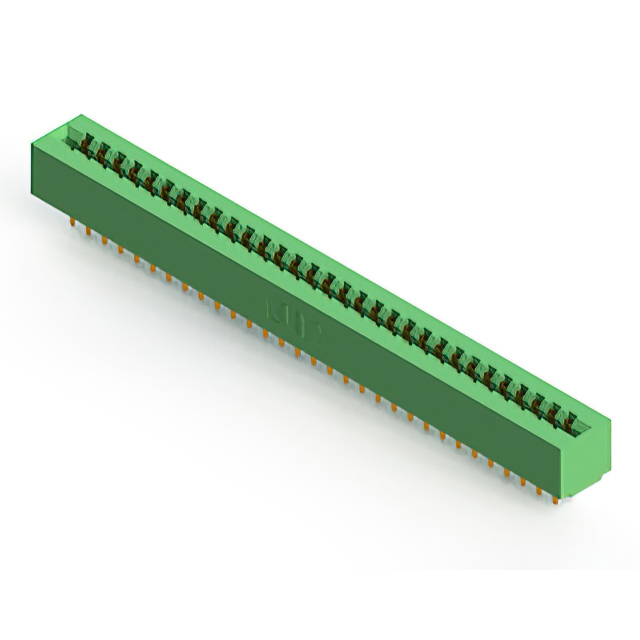

EDAC Inc. 305-062-520-501	2	Polyester Thermoplastic	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C
EDAC Inc. 305-062-521-508	2	Polyester Thermoplastic	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

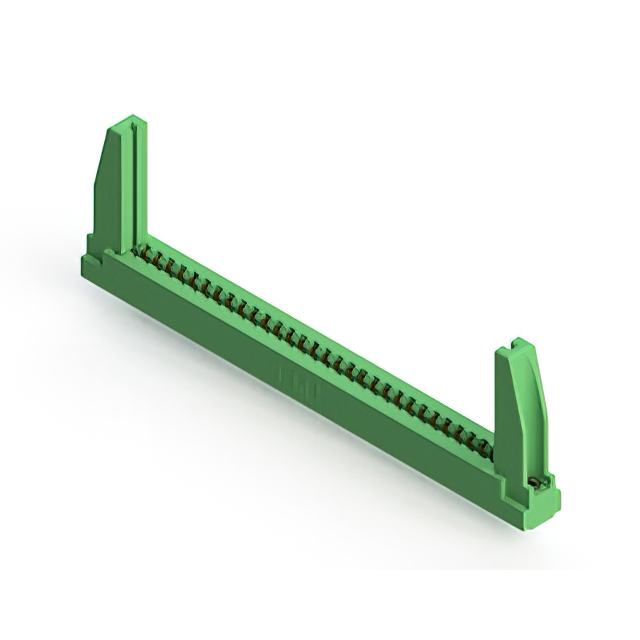

EDAC Inc. 305-062-521-278	2	Polyester Thermoplastic	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

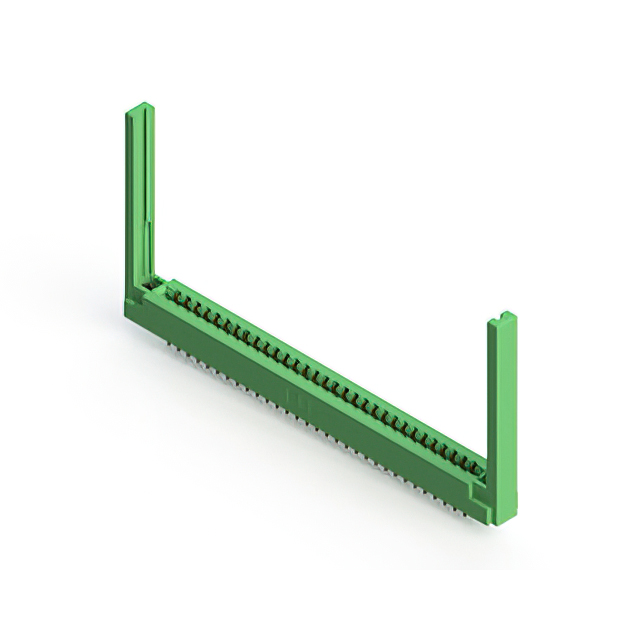

EDAC Inc. 305-062-556-568	2	Polyester Thermoplastic	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Card Extender Card Guides

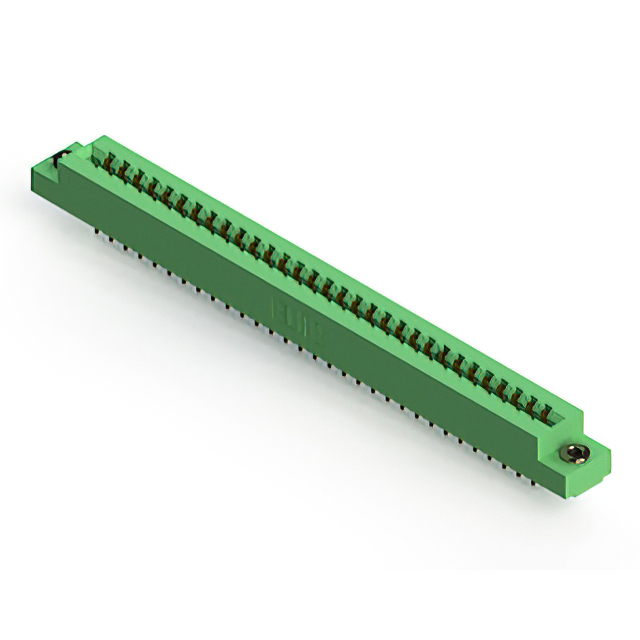

EDAC Inc. 305-062-556-203	2	Polyester Thermoplastic	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Copper Alloy	62	Semi Bellows	Solder	Green	31	Dual	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Card Extender
