629-27W Series
Manufacturer: EDAC Inc.
Beta
⌘K

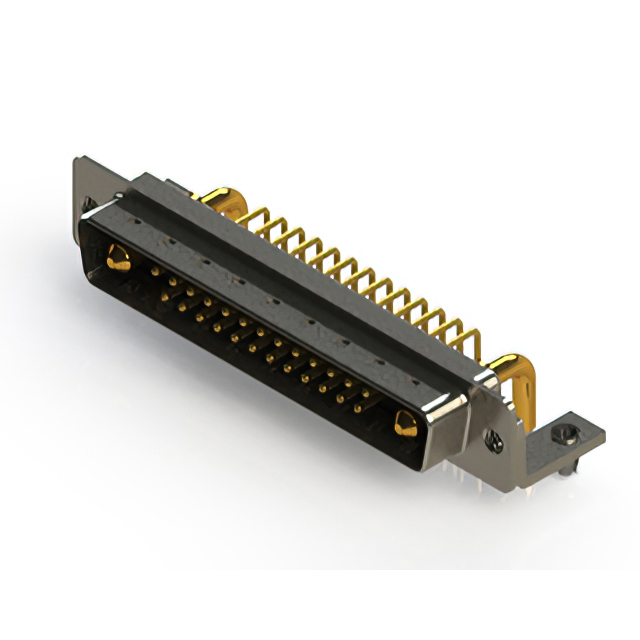

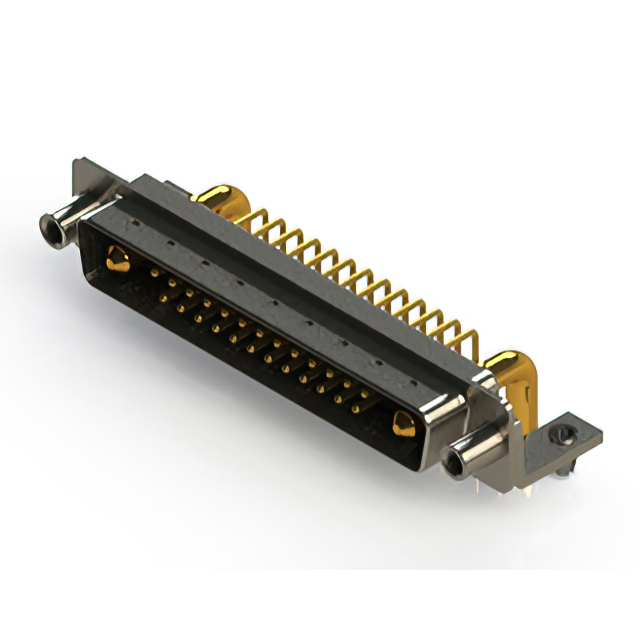

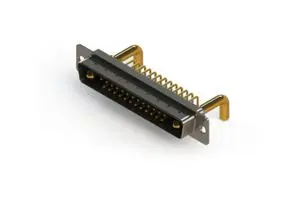

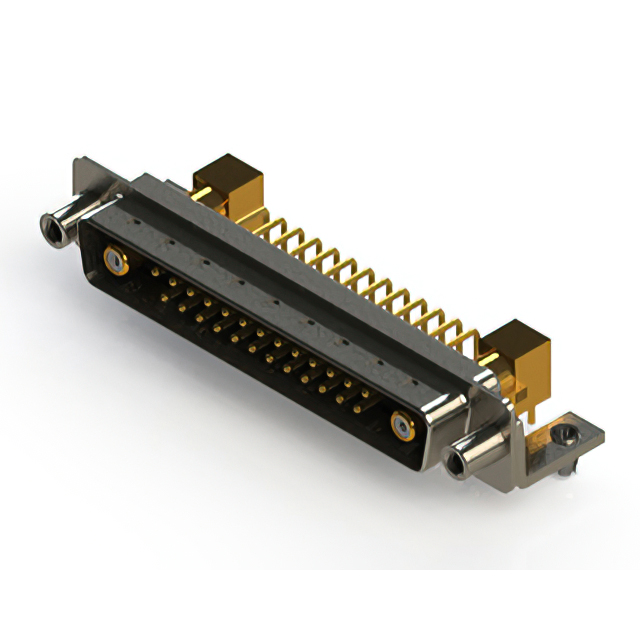

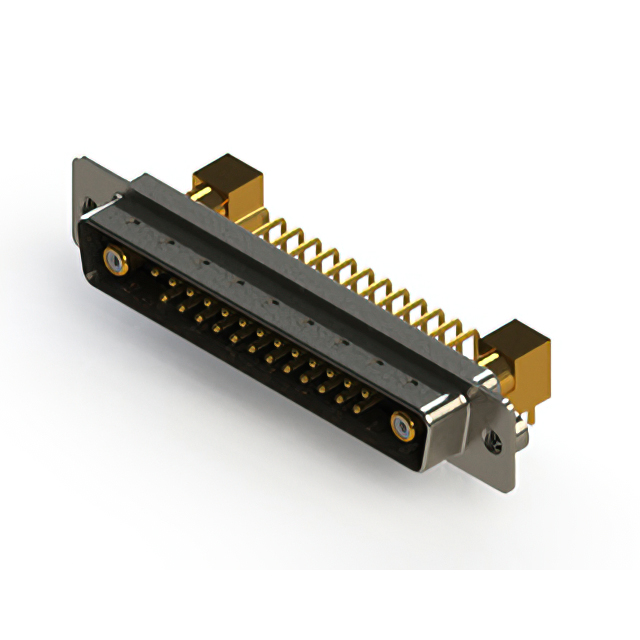

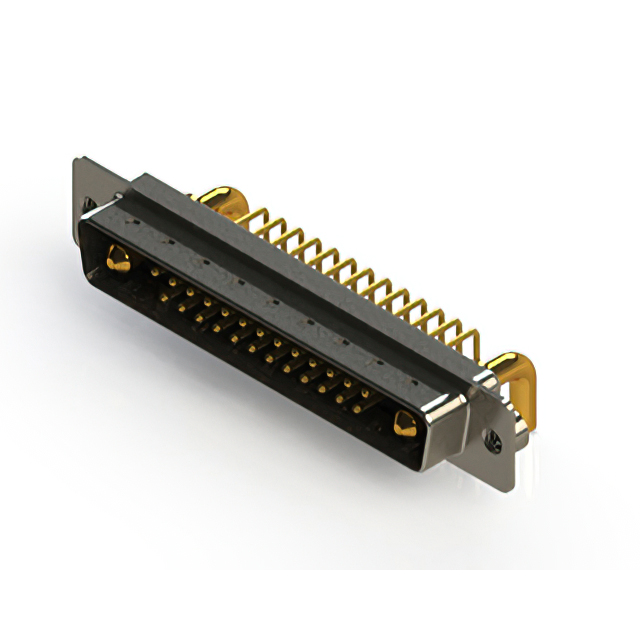

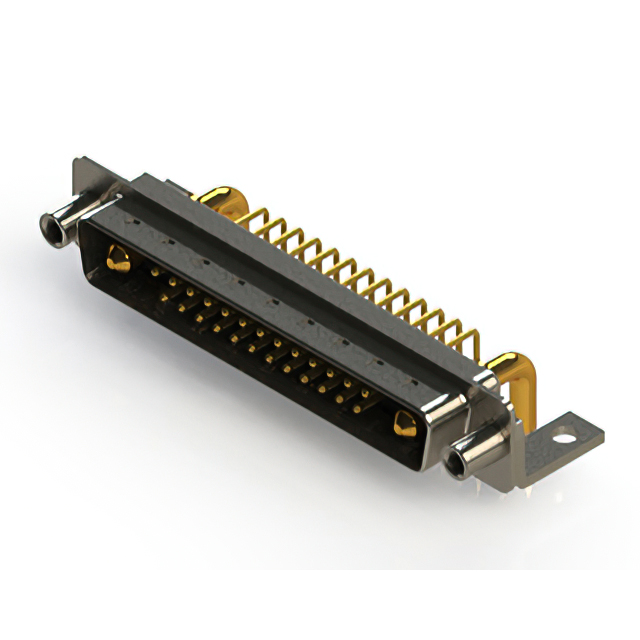

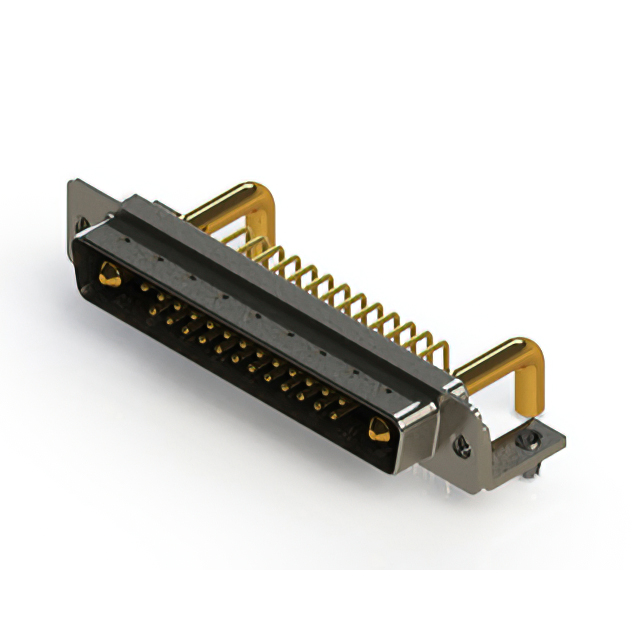

CONN D-SUB PLUG 27POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Voltage Rating | Dielectric Material | Connector Type | Contact Finish | Flange Feature | Backset Spacing | Backset Spacing | Mounting Type | Termination | Features | Current Rating (Amps) | Contact Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Style | Flange Feature | Contact Finish Thickness | Shell Material, Finish | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | 5 A 40 A | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | Housing/Shell | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | 5 A 30 A | Signal and Power | 2 | 4 | 27W2 | UL94 V-0 | Combo D-Sub | 4-40 | Flash | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | 5 A 40 A | Signal and Power | 2 | 4 | 27W2 | UL94 V-0 | Combo D-Sub | Flash | |||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | Housing/Shell (M3) | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | 5 A 40 A | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | Housing/Shell | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | 4-40 | Nickel Plated Steel | 20A 5A | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | Signal and Power | 2 | 4 | 27W2 | UL94 V-0 | Combo D-Sub | Flash | 20A 5A | |||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | Housing/Shell | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | 5 A 30 A | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | 4-40 | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | Housing/Shell | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Coax Signal | 2 | 4 | 27W2 | UL94 V-0 | Combo D-Sub | 4-40 | Flash | 2 | 25 | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Grounding Indents Mounting Brackets | 5 A 30 A | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Plug Male Pins | Gold | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Board Lock Grounding Indents Mounting Brackets | Signal and Power | 2 | 4 | 27W2 | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | Nickel Plated Steel | 20A 5A |
