EEG-A1 Series

Catalog

CAP ALUM 4100UF 20% 50V SCREW CH

Part	Lifetime @ Temp.	Mounting Type	Package / Case	Ripple Current @ Low Frequency	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Applications	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEG-A1H412CGE	3000 Hrs	Chassis Mount	Radial Can - Screw Terminals	5.4 A	Polar	85 °C	-40 °C	1.375 "	34.93 mm	107 mOhm	General Purpose	0.5 in	12.7 mm	4100 µF	3.125 in	79.38 mm	50 VDC	20 %
Panasonic Industrial Automation Sales EEG-A1E123CCE	3000 Hrs	Chassis Mount	Radial Can - Screw Terminals	5.13 A	Polar	85 °C	-40 °C	1.375 "	34.93 mm	42 mOhm	General Purpose	0.5 in	12.7 mm	12000 µF	2.125 in	53.98 mm	25 VDC	20 %

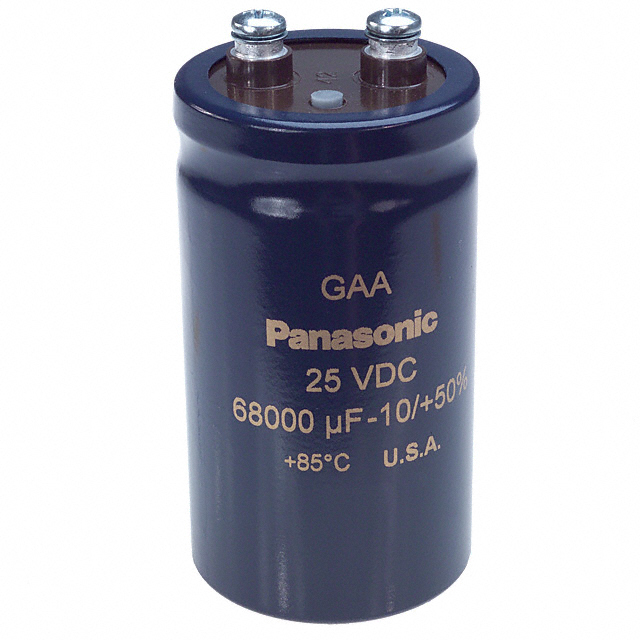

Panasonic Industrial Automation Sales EEG-A1E683FHE	3000 Hrs	Chassis Mount	Radial Can - Screw Terminals	17.14 A	Polar	85 °C	-40 °C	2 in	50.8 mm	9 mOhm	General Purpose	0.874 in	22.2 mm	68000 µF	3.625 in	92.08 mm	25 VDC	20 %

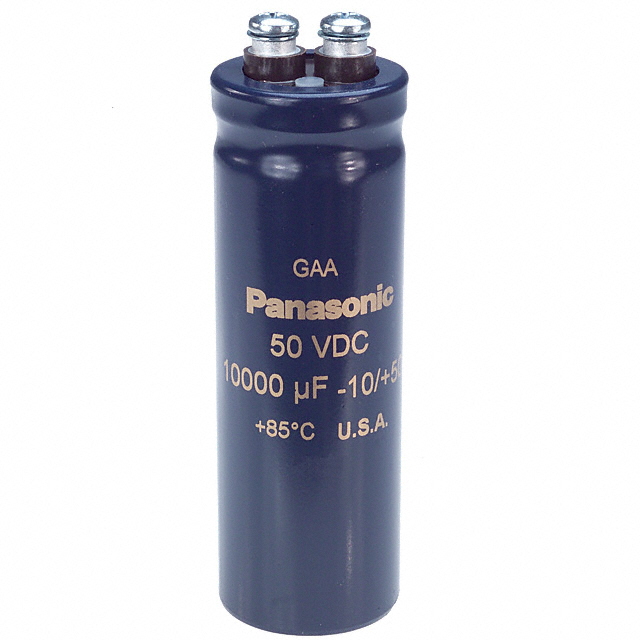

Panasonic Industrial Automation Sales EEG-A1H103CKE	3000 Hrs	Chassis Mount	Radial Can - Screw Terminals	8.79 A	Polar	85 °C	-40 °C	1.375 "	34.93 mm	44 mOhm	General Purpose	0.5 in	12.7 mm	10000 µF			50 VDC	20 %	104.78 mm	4.125 "
