1771 Series

Catalog

CABLE 2COND 23AWG ORG SHLD

Part	Shield Coverage	Shield Material	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Usage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Conductor Insulation	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]

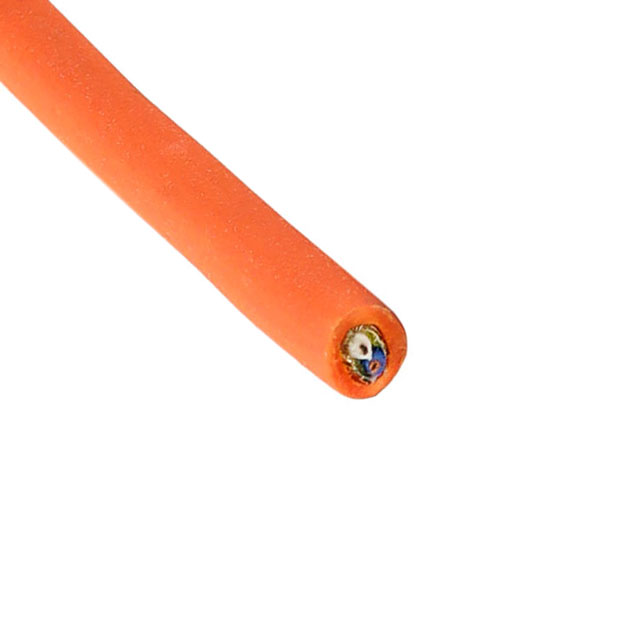

ALPHA WIRE 1771 OR001	95 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	Orange	60	40	Copper Bare	2	Communication Control	23 AWG	1.016 mm	0.04 in	304.8 m	1000 ft	-20 ░C	60 °C	Braid	Polyethylene (PE)	600 V	0.243 in	6.17 mm	Multi-Conductor

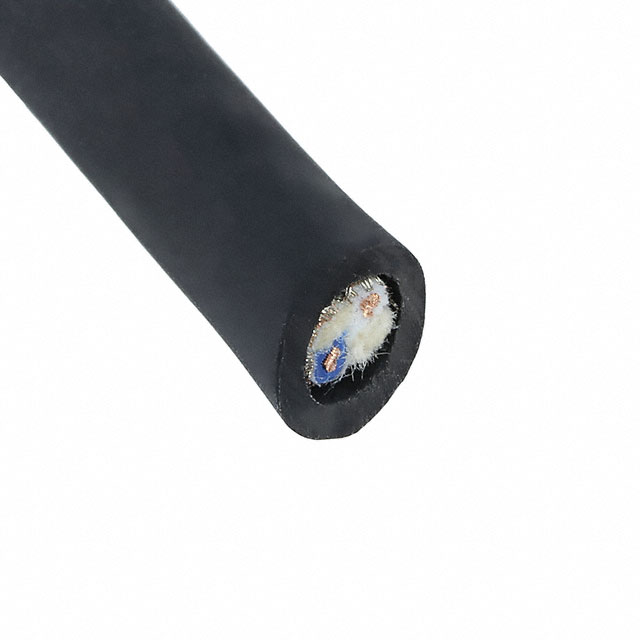

ALPHA WIRE 1771 BK005	95 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	60	40	Copper Bare	2	Communication Control	23 AWG	1.016 mm	0.04 in			-20 ░C	60 °C	Braid	Polyethylene (PE)	600 V	0.243 in	6.17 mm	Multi-Conductor	100 ft	30.5 m
ALPHA WIRE 1771 OR005	95 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	Orange	60	40	Copper Bare	2	Communication Control	23 AWG	1.016 mm	0.04 in			-20 ░C	60 °C	Braid	Polyethylene (PE)	600 V	0.243 in	6.17 mm	Multi-Conductor	100 ft	30.5 m
