B3SL Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Actuator Material	Switch Travel	Mechanical Life	Contact Rating @ Voltage	Features	Ingress Protection	Circuit	Actuator Height off PCB, Vertical	Operating Force	Outline [x]	Outline [y]	Actuator Orientation	Illumination	Actuator Type	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]

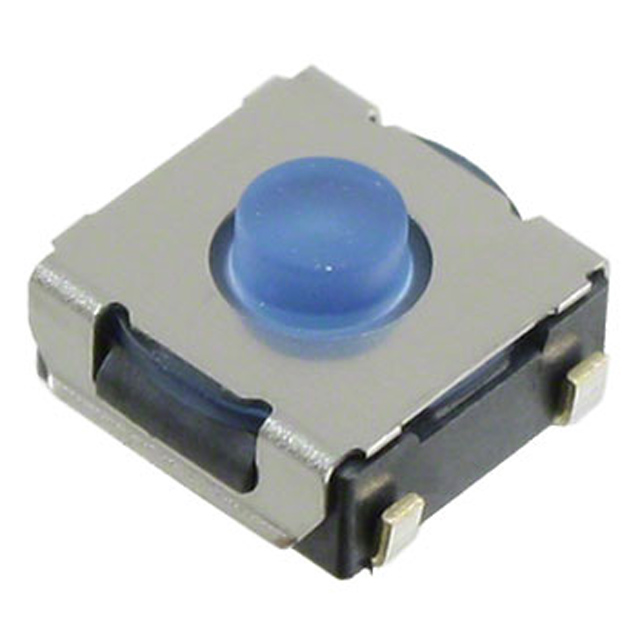

Omron Electronics Inc-EMC Div B3SL-1005P	J Lead SMD (SMT) Tab	Rubber	0.6 mm	100000 Cycles	0.05 A 12 VDC	Sealed - Fully	IP67 - Dust Tight Waterproof	SPST-NO	3.4 mm	357 gf	6 mm	6 mm	Top Actuated	Non-Illuminated	Standard	Surface Mount	Off-Mom	90 °C	-25 °C

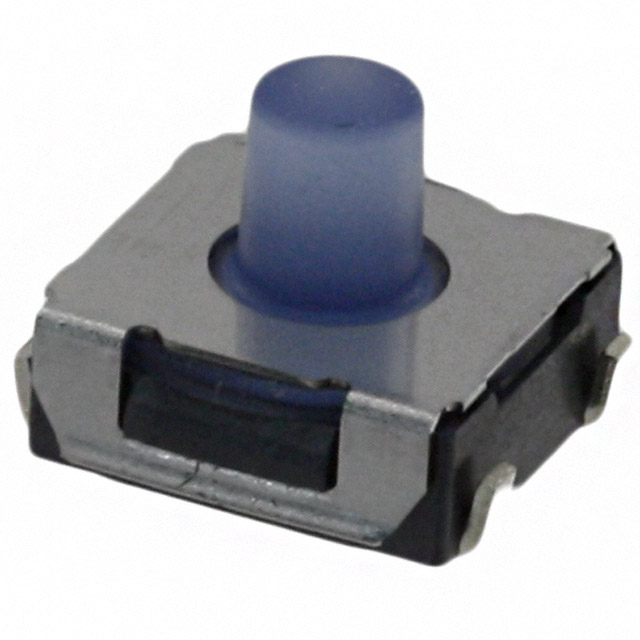

Omron Electronics Inc-EMC Div B3SL-1025P	J Lead SMD (SMT) Tab	Rubber	0.8 mm	100000 Cycles	0.05 A 12 VDC	Sealed - Fully	IP67 - Dust Tight Waterproof	SPST-NO		357 gf	6 mm	6 mm	Top Actuated	Non-Illuminated	Standard	Surface Mount	Off-Mom	90 °C	-25 °C	5.1 mm
