PPTC131 Series

Catalog

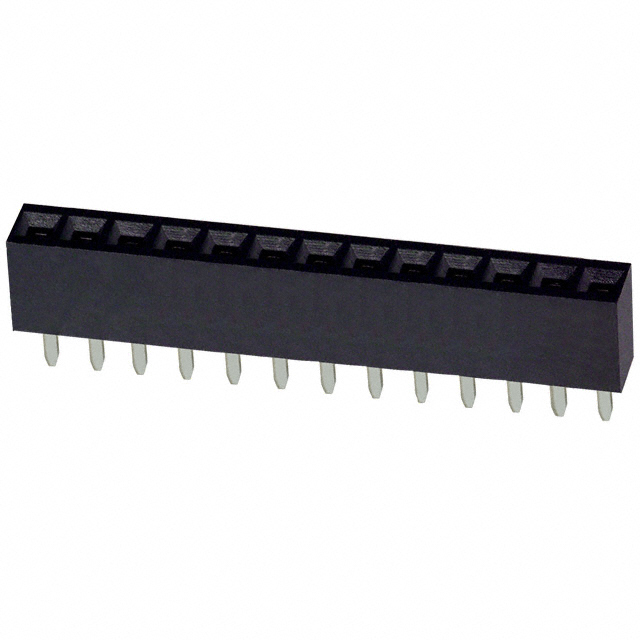

CONN HDR 13POS 0.1 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Termination	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows	Fastening Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPTC131LFBN	Phosphor Bronze	Polyester	Square	Tin	All	Black	Through Hole	0.335 "	8.51 mm	13	Solder	UL94 V-0	-40 C	105 ░C	250 V	Female Socket	3 A	0.1 "	2.54 mm	1	Push-Pull	Header	0.126 "	3.2 mm
Sullins Connector Solutions PPTC131LFBN-RC	Phosphor Bronze	Polyester	Square	Tin	All	Black	Through Hole	0.335 "	8.51 mm	13	Solder	UL94 V-0	-40 C	105 ░C	250 V	Female Socket	3 A	0.1 "	2.54 mm	1	Push-Pull	Header	0.126 "	3.2 mm
