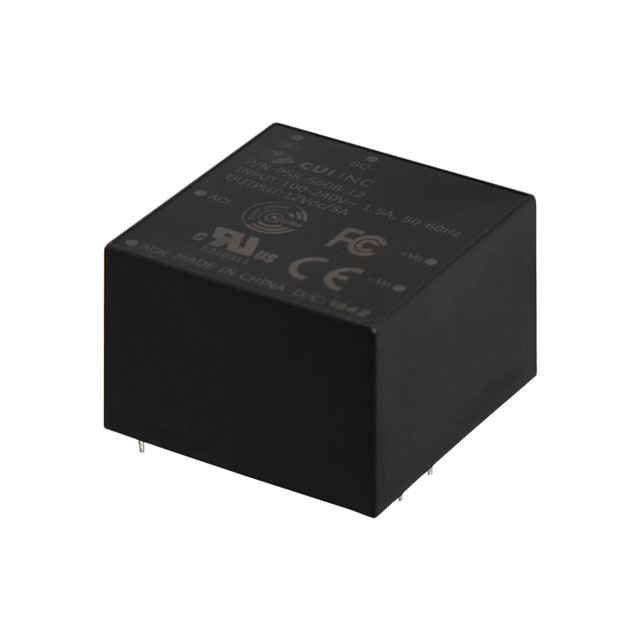

PSK-S60 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER MODULES AC-DC, 60 W, 12 VDC, SINGLE OUTPUT, ENCAPSULATED, POWER BOOST
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Features | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Approval Agency | Voltage - Output 1 | Efficiency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Load Regulation | Line Regulation | Standard Number | Applications | Type | Number of Outputs | Current - Output (Max) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 35.8 mm | 54.3 mm | 1.41 " | 54.3 mm | 2.14 " | 2.14 " | Through Hole | Universal Input | 90 VAC 120 VDC | 264 VAC 370 VDC | 60 W | CB Scheme EN IEC SIQ TUV UL | 12 V | 88 % | 6-DIP Module | -30 °C | 70 °C | ±1% | 1 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | ITE (Commercial) | Enclosed | 1 | 5 A | |
CUI Inc. | 35.8 mm | 54.3 mm | 1.41 " | 54.3 mm | 2.14 " | 2.14 " | Through Hole | Universal Input | 90 VAC 120 VDC | 264 VAC 370 VDC | 60 W | CB Scheme EN IEC SIQ TUV UL | 24 V | 89 % | 6-DIP Module | -30 °C | 70 °C | ±1% | 1 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | ITE (Commercial) | Enclosed | 1 | 2.5 A | |
CUI Inc. | 35.8 mm | 54.3 mm | 1.41 " | 54.3 mm | 2.14 " | 2.14 " | Through Hole | Universal Input | 90 VAC 120 VDC | 264 VAC 370 VDC | 40 W | CB Scheme EN IEC SIQ TUV UL | 5 V | 86 % | 6-DIP Module | -30 °C | 70 °C | ±1% | 1 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | ITE (Commercial) | Enclosed | 1 | 8 A | |
CUI Inc. | 35.8 mm | 54.3 mm | 1.41 " | 54.3 mm | 2.14 " | 2.14 " | Through Hole | Universal Input | 90 VAC 120 VDC | 264 VAC 370 VDC | 60 W | CB Scheme EN IEC SIQ TUV UL | 48 V | 90 % | 6-DIP Module | -30 °C | 70 °C | ±1% | 1 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | ITE (Commercial) | Enclosed | 1 | 1.25 A | |
CUI Inc. | 35.8 mm | 54.3 mm | 1.41 " | 54.3 mm | 2.14 " | 2.14 " | Through Hole | Universal Input | 90 VAC 120 VDC | 264 VAC 370 VDC | 60 W | CB Scheme EN IEC SIQ TUV UL | 15 V | 88 % | 6-DIP Module | -30 °C | 70 °C | ±1% | 1 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | ITE (Commercial) | Enclosed | 1 | 4 A |
