S15B-XH Series

Catalog

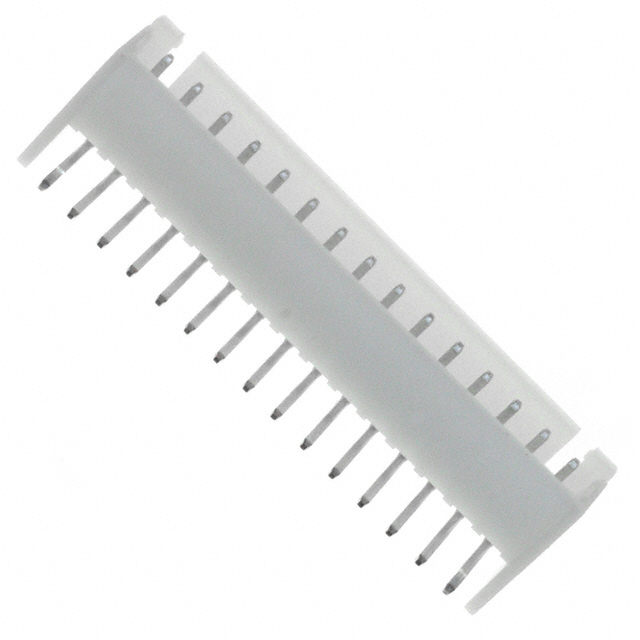

CONN HEADER R/A 15POS 2.5MM

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Insulation Material	Voltage Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Style	Shrouding	Contact Type	Mounting Type	Contact Shape	Connector Type	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Rows
JST Sales America Inc. S15B-XH-A	2.5 mm	0.098 in	0.134 "	3.4 mm	15	UL94 V-0	All	Detent Lock	Nylon 6/6 Polyamide (PA66)	250 V	Press-Fit Solder	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Male Pin	Right Angle Through Hole	Square	Header	Natural	Tin	3 A	Brass	6.1 mm	0.24 in	1
JST Sales America Inc. S15B-XH-A-1	2.5 mm	0.098 in	0.134 "	3.4 mm	15	UL94 V-0	All	Detent Lock	Nylon 6/6 Polyamide (PA66)	250 V	Press-Fit Solder	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Male Pin	Right Angle Through Hole	Square	Header	Natural	Tin	3 A	Brass	6.1 mm	0.24 in	1
