122A100 Series
Manufacturer: Amphenol CONEC
Beta
⌘K

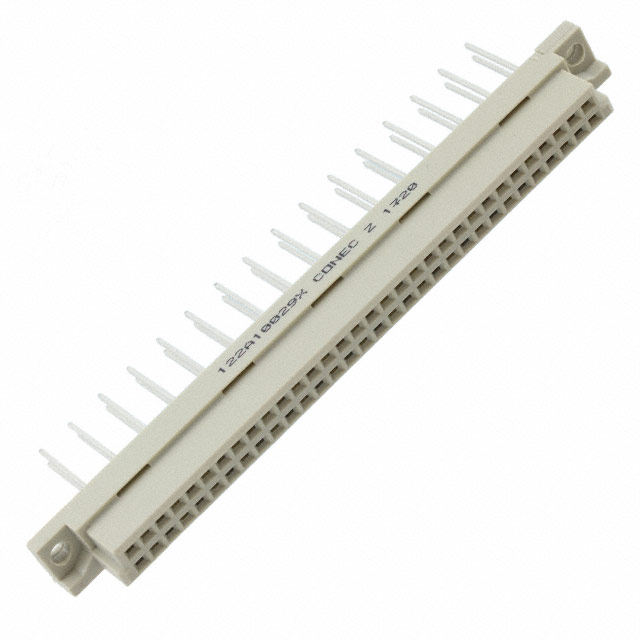

CONN DIN RCPT 64POS PCB GOLD
| Part | Connector Type | Material Flammability Rating | Style | Number of Positions Loaded | Termination | Number of Positions | Mounting Type | Material - Insulation | Pitch [x] | Pitch [x] | Number of Rows | Current Rating (Amps) | Level, Class | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 32 | Wire Wrap | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 2 A | 3 | Gold | -55 °C | 125 °C |
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 64 | Solder | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C | ||
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 32 | Solder | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C | ||
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 32 | Wire Wrap | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 2 A | 3 | Gold | -55 °C | 125 °C |
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 64 | Solder | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C | ||
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 32 | Solder | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C | ||
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 32 | Solder | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C | ||
Amphenol CONEC | Receptacle Female Sockets | UL94 V-0 | B | 64 | Wire Wrap | 64 | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 2 A | 3 | Gold | -55 °C | 125 °C |
