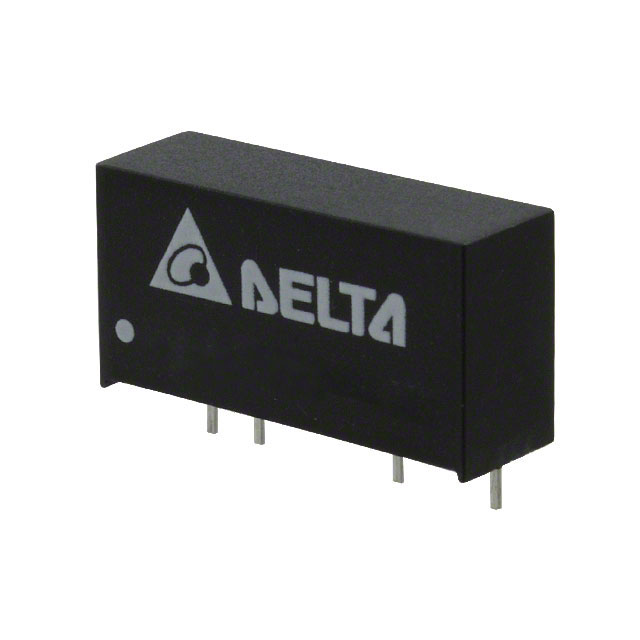

PD01D Series

Catalog

DC DC CONVERTER +/-15V 1W

Part	Features	Number of Outputs	Type	Voltage - Output 2	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Package / Case	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Delta Electronics PD01D2415A	SCP	2	Isolated Module	-15 V	Medical	3000 V	26.4 V	85 °C	-40 C	15 V	21.6 V	34 mA	34 mA	Through Hole	7-SIP Module 5 Leads	80 %	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm
Delta Electronics PD01D0512A	SCP	2	Isolated Module	-12 V	Medical	3000 V	5.5 V	85 °C	-40 C	12 V	4.5 V			Through Hole	7-SIP Module 5 Leads	78 %	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	42 mA
Delta Electronics PD01D2409A	SCP	2	Isolated Module	-9 V	Medical	3000 V	26.4 V	85 °C	-40 C	9 V	21.6 V	56 mA		Through Hole	7-SIP Module 5 Leads	76 %	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm
Delta Electronics PD01D2405A	SCP	2	Isolated Module	-5 V	Medical	3000 V	26.4 V	85 °C	-40 C	5 V	21.6 V			Through Hole	7-SIP Module 5 Leads	72 %	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm		100 mA	100 mA
